IP40 Aluminum Case 802.3at Industrial PoE Switch 100m Transmission

IP40 Aluminum Case 802.3at Industrial PoE Switch 100m Transmission

Industrial Gigabit PoE Extender 1-Port 802.3bt PoE++ to 4-Port 802.3af/at

Industrial PoE Switch Advantages

► 10/100/1000Mbps Ethernet Ports

► 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE

► IP40-rated aluminum case

► Can be Powered by IEEE 802.3at or High-Power PoE 95W Power Sourcing Equipment

► Can Power IEEE 802.3af PoE, IEEE 802.3at or High-Power PoE 95W Powered Devices

► Extends an additional 100m for PoE network. Daisy chain support connection up to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.)

► Support DIN-Rail & Wall-mount installation

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

Industrial PoE Switch Technical Indexes

Industrial PoE Switch Overview

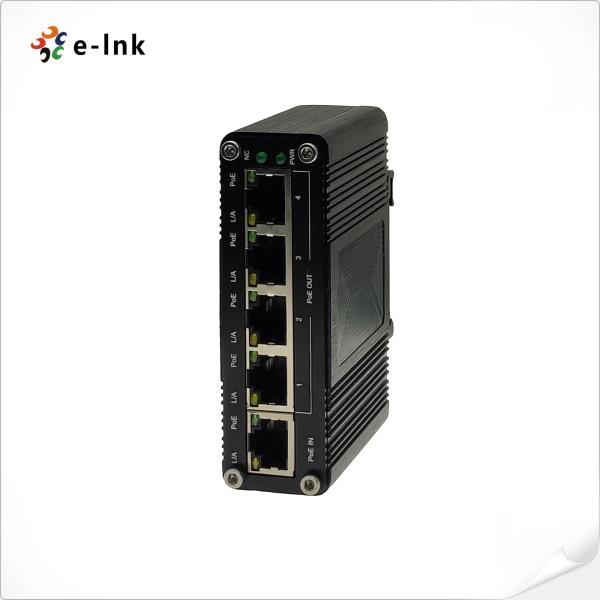

LNK-IPE104-90 is an industrial 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender designed especially for the point to multipoint PoE application. The LNK-IPE104-90 can obtain a maximum of 95-watt PoE power from 802.3bt PoE++ input port and supplies a maximum of 75-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3at Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m where up to 4 powered devices (PDs) can be powered at the same time. The LNK-IPE104-90 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

Industrial PoE Switch Ordering Information
