QB/T2710-2005 Double Column Spring Tensile Strength Testing Machine

Categories Universal Testing Machine
Model Number:: Double Column Type Spring Tensile Strength Compression Load Testing Machine
load cell: 20KN
resolution of force: 1/200000
accuracy of force: ≤0.5%
Power magnification: 7 automatic switching
accuracy of extensometer: ≤0.5%
testing width: 380mm(can be increased the width)
Brand Name: Zhongli
Model Number: ZL-8001B
Certification: CE,ISO
Place of Origin: China
MOQ: 1 set
Price: negotiation
Payment Terms: T/T, L/C, D/A, D/P, Western Union,
Supply Ability: 100 sets per month
Delivery Time: 10 days after order
Packaging Details: Double Column Type Spring Tensile Strength Compression Load Testing Machine is packaged within wooden case.
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

QB/T2710-2005 Double Column Spring Tensile Strength Testing Machine

QB/T2710-2005 Double Column Spring Tensile Strength Testing Machine

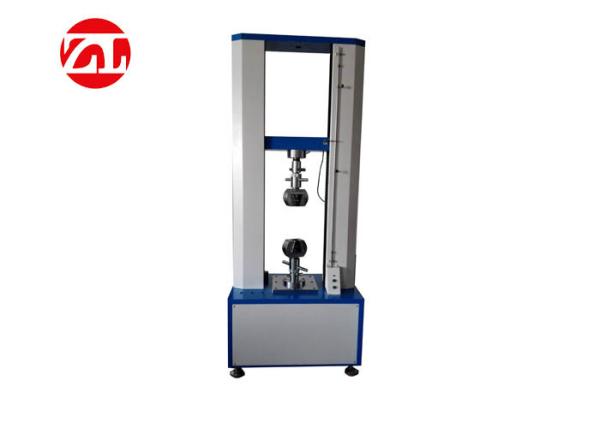

Double Column Type Spring Tensile Strength Compression Load Testing Machine
The machine is designed with mechanical-electrical integration, consisting of force-measuring sensor, transmitter, microprocessor, load drive mechanism, computer and color inkjet printer. Featuring a high-precision electronic motor with five-speed settings, this floor-standing model incorporates modern industrial design and ergonomic principles in its construction and coating.
This testing machine can evaluate various materials through stretch, compression, bending, shear, embedded relay, peeling, tearing, crack, and other tests. Suitable for materials including rubber, plastics, leather, metal, nylon wire, fabric, paper, and applications in aerospace, packaging, construction, petrochemical, electrical, and vehicle industries.
Double Column Spring Tensile Strength Testing Machine ZL-8001B Computer Servo Type Universal Testing Machine Documentation
Standards and Standard Configuration
  • GB/T4689.20-1996 - Measuring fastness of leather's adhesion
  • QB/T2710-2005 - Measuring leather's expansion and the rate of elongation
  • QB/T2711-2005 - Measuring tear force of leather
  • QB/T2712-2005 - Measuring leather's strength and stretch of spherical crack test
Main Technical Parameters
ParameterSpecification
Load Cell20KN
Resolution of Force1/200000
Accuracy of Force≤0.5%
Power Magnification7 automatic switching
Displacement Resolution1/1000
Accuracy of Displacement≤0.5%
Resolution of Extensometer1/1000
Accuracy of Extensometer≤0.5%
Range of Speed0.01-500mm/min or 1000mm/min (according to customer needs)
Effective Tensile Stroke800mm; 1000mm; 1200mm (customizable)
Testing Width380mm (customizable)
Power Supply220V
PowerApproximately 2KW (varies with motor selection)
Machine SizeApproximately 80×55×220cm (L×W×H)
Machine WeightApproximately 250 kg
UnitsKg, N, LB, TON (interchangeable)
