| Categories | Ustc Litz Wire |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Certification: | ISO9001/ISO14001/UL/SGS |
| Place of Origin: | China |
| MOQ: | 3kg |
| Price: | Negotiation |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Delivery Time: | 2-15 workding days |
| Packaging Details: | Spool with carton |
| Name: | USTC155/180 Custom Multi-strand Copper Litz Wire |
| Diameter: | 0.03mm |
| Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper |
| Insulation: | Enamel |
| Rated Temperature: | 155/180 |
| Key word: | USTC155/180 Custom Multi-strand Copper Litz Wire |
| No. of strands: | 19 |
| Company Info. |
| Tianjin Ruiyuan Electric Material Co,.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

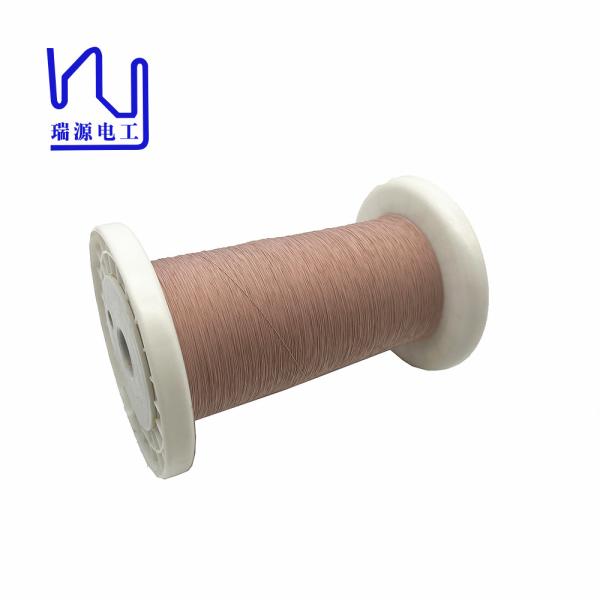

USTC155/180 Custom Multi-strand Copper Litz Wire
Return and refund policy
We have full confidence in our products and offer a free return and refund if any quality issues are examined and verified.
Product | USTC155/180 Custom Multi-strand Copper Litz Wire |
Key word | USTC155/180 Custom Multi-strand Copper Litz Wire |
Type | Silk covered litz wire |
MOQ | 3KG |
Technical and structural requirement
DescriptionConductor diameter*Strand number | 2USTC-F 0.03*19 | |
Single wire | Conductor diameter(mm) | 0.030 |
Conductor diameter tolerance (mm) | ±0.003 | |
Minimal insulation thickness(mm) | 0.0015 | |
Maximal overall diameter (mm) | 0.044 | |
Thermal Class(℃) | 155 | |
Strand Composition | Strand number | 19 |
Pitch(mm) | 16±3 | |
Stranding direction | S | |
Insulation layer | Category | Nylon |
UL | / | |
Material specs(mm*mm or D) | 200 | |
Times ofWrapping | 1 | |
Overlap(%) or thickness(mm),mini | 0 02 | |
Wrapping direction | S | |
Characteristics | Max O. D (mm) | 0.25 |
Max pin holes faults/6m | / | |
Max resistance (Ω/Km at20℃) | 1519 | |
Mini breakdown voltage (V) | 400 | |
Certificate | / | |
package | spool | / |
Weight per spool (KG) | / | |
|
