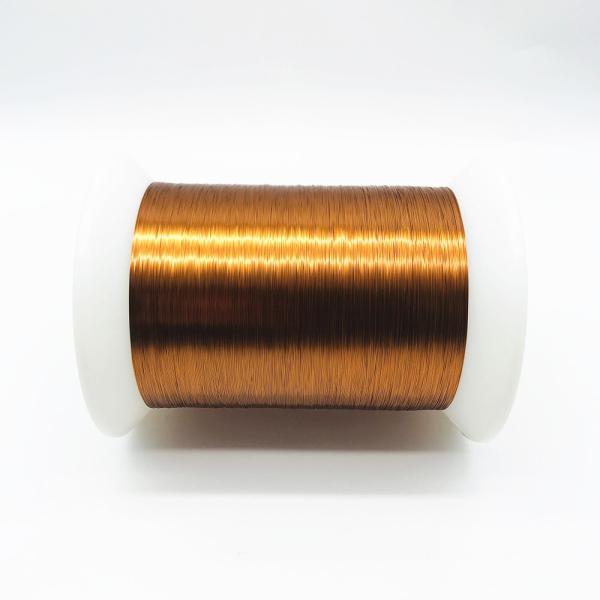

1.8mm High Temperature Flat Copper Magnet Wire Enameled

Name: 18mm High Temperature Flat Copper Magnet Wire Enameled
Brand: Ruiyuan
Price: 1 USD

1.8mm High Temperature Flat Copper Magnet Wire Enameled

Categories	Rectangular Copper Wire
Brand Name:	Ruiyuan
Model Number:	0.3mm* 0.18
Certification:	UL/ISO9001/ISO14001/RoHS/Reach
Place of Origin:	China
MOQ:	5kg
Price:	Negotiation
Payment Terms:	Negotiation
Supply Ability:	10Ton/week
Delivery Time:	2-15 days
Packaging Details:	Carton
Product Name:	1.8mm High Temperature Enameled Flat Copper Magnet Wire
Thermal rating:	220
Insulation Material:	Amide imide
Width:	0.3mm
Thickness:	0.18mm
Conductor material:	Copper
Key word:	1.8mm High Temperature Enameled Flat Copper Magnet Wire Rectangular Shape

Contact Now

Add to Cart

Company Info.

Tianjin Ruiyuan Electric Material Co,.Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

1.8mm High Temperature Flat Copper Magnet Wire Enameled

1.8mm High Temperature Enameled Flat Copper Magnet Wire Rectangular Shape

The rectangular enameled copper wire is made of oxygen free copper, suitable for oil-immersed transfomrers,dry-type transformer,high-termperature transformer,Generator,welding machine and kinds of motors .ect.

Characteristics	Standard			Test Result
Appearance	Smooth Equality			Smooth Equality
Conductor Diameter	Width	3.00	±0.050	0.298	0.299	0.300
Conductor Diameter	Thickness	0.18	±0.050	0.180	0.181	0.182
Thickness of self bonding layer	Min.	0.002		0.003	0.003	0.003
Thickness of insulation	Thickness	0.005-0.015		0.008	0.008	0.008
	Width	0.005-0.015		0.011	0.011	0.011
Overall Diameter (Including bonding layer)	Thickness	Max.0.219		0.201	0.202	0.203
Overall Diameter (Including bonding layer)	Width	Max.0.364		0.326	0.327	0.328
Pinhole	1hole/m				0	0
Elongation	Min ≥15%			30	30	30
Flexibility and Adherence	No crack			No crack
Conductor Resistance (Ω/km at 20℃)	423.82-321.01			352.000	352.000	352.000
Breakdown Voltage	Min 0.50kv			1.650	1.250	1.360
Heat shock	No Crack					No Crack
