| Categories | Copper Litz Wire |
|---|---|
| Brand Name: | Rvyuan |
| Model Number: | Copper litz wire |
| Certification: | ISO9001/ISO14001/UL/SGS |
| Place of Origin: | China |
| MOQ: | 20kg |
| Price: | Negotiation |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Delivery Time: | 2-15 workding days |
| Packaging Details: | Spool with carton |
| Name: | High Frequency Multi strands Enameled Stranded Wire Mylar Litz Wire |
| Diameter: | 0.4mm |
| Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper |
| Insulation: | Enamel |
| Rated Temperature: | 155/180 |
| Key word: | High Frequency Multi strands Enameled Stranded Wire Mylar Litz Wire |
| No. of strands: | 45 |
| Company Info. |
| Tianjin Ruiyuan Electric Material Co,.Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

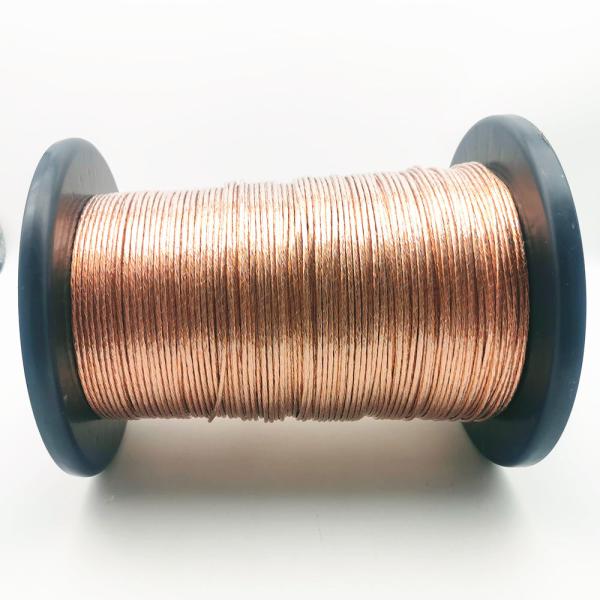

High Frequency Multi strands Enameled Stranded Wire Mylar Litz Wire
Product range:
The range of the number of strands: 2 to 36000 strands (different specifications, according to the cross-sectional area)
Finished outer diameter range: 0.1～10mm
Cross-sectional area: up to 50mm²
Enameled single wire (nominal diameter of conductor): 0.020～0.50mm
Type of enameled single wire: all varieties of enameled wire
Number of twists: 10～1200Ts/m, corresponding twist distance: 100～0.83mm
Twist direction: "S" or "Z", S=clockwise, Z=counterclockwise
Features:
◆ Single lines can be arranged in color order without confusion.
◆ High elastic wire can be added in the middle of the stranded wire, and the tensile strength is high.
◆ All self-produced enameled single wires are used, with reliable product quality and guaranteed delivery.
Name | High Frequency Multi strands Enameled Stranded Wire Mylar Litz Wire |
Key word | Copper litz wire |
Insulationh | Enamel, polyster cover |
Thermal rating | 155degree |
Diameter of the enameled copper wire | 0.4mm |
Number of strands | 45 |
Type | High Frequency Multi strands Enameled Stranded Wire Mylar Litz Wire |
|
