| Categories | Z2000 Inverter |
|---|---|
| Brand Name: | ZONCN |
| Model Number: | Z2200-1R5G-3 |
| Certification: | CE; CE |
| Place of Origin: | China |
| MOQ: | 1 PC |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 100,000 pcs/month |
| Delivery Time: | 7-30 days |
| Packaging Details: | inside: box; outside: carton |
| Type: | frequency inverter |
| Brand: | ZONCN |
| Series: | Z2000 general purpose series |
| Input: | 3PH 220V |
| PID function: | built-in |
| Removable panel: | yes |
| Applicataion: | fan/pump/converyor/water treatment/music fountain |
| Supply ability: | 10000 pcs/month |
| Company Info. |
| Wuhu ZONCN Automation Equipment Co., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

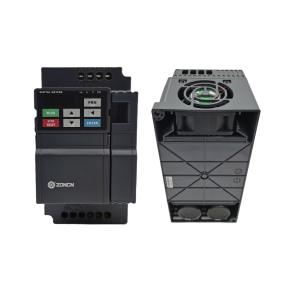

3 Phase Input 220v VFD Drive Inverter 1.5kw 2HP 50hz 60hz Frequency Converter
| Item | Z2000 Inverter | |
| Standard Function | Control mode | Senseless flux vector control(SFVC) ; Voltage/Frequency (V/F) control |
| Maximum frequency | Vector control: 0-320Hz ; V/F control: 0-3200Hz | |
| Carrier frequency | 1-16kHz ; The carrier frequency is automatically adjusted based on the load features | |
| Input frequency solution | Digital setting: 0.01Hz ; Analog setting: maximum frequency x 0.025% | |
| Startup torque | G type: 0.5Hz/150%(SFVC) ; P type: 0.5Hz/100% | |
| Speed range | 1:100 | |
| Speed stability accuracy | ±0.5% | |
| Overload capacity | G type: 60s for 150% of the rated current, 3s for 180% of the rated current. P type: 60s for 120% of the rated current, 3s for 150% of the rated current. | |
| Torque boost | Auto boost ; Customized boost 0.1%-30.0% | |
| V/F curve | Line V/F curve; Multi-point V/F curve; N-power V/F curve | |
| V/F separation | Two types: complete separation; half separation | |
| Ramp mode | Straight-line ramp ; S-curve ramp ; Four groups of acceleration/deceleration time with the range of 0.0-6500.0s | |
| DC braking | DC braking frequency : 0.0Hz to maximum frequency Braking time: 0.0~100.0s Braking action current value: 0.0%~100.0% | |
| JOG control | JOG frequency range: 0.00~50.00Hz JOG acceleration/deceleration time: 0.0~6500.0s | |
| Onboard multiple preset speeds | It implements up to 16 speeds via the simple PLC function or combination of X terminal states. | |
| Onboard PID | It realizes process-controlled closed loop control system easily | |
| Auto voltage regulation(AVR) | It can keep constant output voltage automatically when the mains voltage changes. | |
| Auto voltage/ Over current stall control | The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current | |
| Rapid current limit | It helps to avoid frequent over current faults of the AC drive | |
| Torque limit and control | It can keep constant output voltage automatically when the mains voltage changes | |
| Inverter Model | Rated Output Power(kW) | Rated Input Current(A) | Rated Output Current(A) | Motor Equipped(kW) |
| Input Voltage:1PH or 3PH AC 220V±15% | ||||
| Z2200-0R4G | 0.4 | 5.4 | 2.5 | 0.4 |
| Z2200-0R75G | 0.75 | 7.2 | 5 | 0.75 |
| Z2200-1R5G | 1.5 | 10 | 7 | 1.5 |
| Z2200-2R2G | 2.2 | 16 | 11 | 2.2 |
| Z2200-3R7G | 3.7 | 23 | 16.5 | 3.7 |
| Z2200-5R5G | 5.5 | 21 | 25 | 5.5 |
| Z2200-7R5G | 7.5 | 31 | 32 | 7.5 |
| Input Voltage:3PH AC 380V±15% | ||||
| Z2400-0R75G | 0.75 | 3.8 | 2.5 | 0.75 |
| Z2400-1R5G | 1.5 | 5 | 3.7 | 1.5 |
| Z2400-2R2G | 2.2 | 5.8 | 5 | 2.2 |
| Z2400-3R7G/5R5P | 3.7/5.5 | 10/15.0 | 9/13 | 3.7/5.5 |
| Z2400-5R5G | 5.5 | 15 | 13 | 5.5 |
| Z2400-7R5G/11P | 7.5/11 | 20/26 | 17/25 | 7.5/11 |
| Z2400-11G/15P | 11/15 | 26/35 | 25/32 | 11/15 |
| Z2400-15G/18.5P | 15/18.5 | 35/38 | 32/37 | 15/18.5 |
| Z2400-18.5G/22P | 18.5/22 | 38/46 | 37/45 | 18.5/22 |
| Z2400-22G/30P | 22/30 | 46/62 | 45/60 | 22/30 |
| Z2400-30G/37P | 30/37 | 62/76 | 60/75 | 30/37 |
| Z2400-37G/45P | 37/45 | 76/90 | 75/90 | 37/45 |
| Z2400-45G/55P | 45/55 | 90/105 | 90/110 | 45/55 |
| Z2400-55G | 55 | 105 | 110 | 55 |
| Z2400-75G/90P | 75/90 | 140/160 | 150/176 | 75/90 |
| Z2400-90G/110P | 90/110 | 160/210 | 176/210 | 90/110 |
| Z2400-110G/132P | 110/132 | 210/240 | 210/253 | 110/132 |
| Z2400-132G/160P | 132/160 | 240/290 | 253/300 | 132/160 |
| Z2400-160G/185P | 160/185 | 290/330 | 300/340 | 160/185 |
| Z2400-185G/200P | 185/200 | 330/370 | 340/380 | 185/200 |
| Z2400-200G/220P | 200/220 | 370/410 | 380/420 | 200/220 |
| … | ||||
Inverter Features
Inverters we can do
| No. | Inverter Input | Inverter Output |
| 1 | 110v single phase | 110v single phase |
| 2 | 110v single phase | 110v 3 phase |
| 3 | 110v single phase | 220v 3 phase |
| 1 | 220v single phase | 220v single phase |
| 2 | 220v single phase | 220v 3 phase |
| 3 | 220v single phase | 380v 3 phase |
| 4 | 220v 3 phase | 220v 3 phase |
| 5 | 220v 3 phase | 380v 3 phase |
| 6 | 380v 3 phase | 380v 3 phase |
| 7 | 440v 3 phase | 440v 3 phase |
| 8 | 480v 3 phase | 480v 3 phase |
Any special rquirements for inverter, pls feel free to contact us directly.
|
