| Categories | Centrifugal Pump |
|---|---|
| Brand Name: | COWELL |
| Model Number: | YCBH-80A |
| Place of Origin: | Shanghai, China |
| Packaging Details: | Strong carton for YCBH-80A Centrifugal pump for russia market by cowell |
| Certification: | MFG. License |
| Payment Terms: | T/T |
| Delivery Time: | 7-15 Working days |
| Diameter: | 80mm/3'' |
| Flow rate: | 35m3/h |
| Head: | 26m |
| Suction Head: | 5.5-5.8M |
| Speed: | 1450R/min |
| Power: | 5.5KW |
| Material: | Aluminum |
| Company Info. |
| Shanghai Cowell Machinery Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

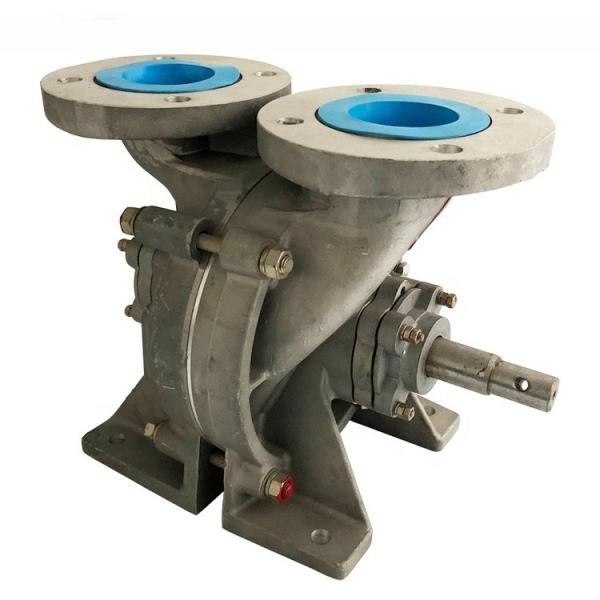

YCBH-80A Centrifugal Pump
Description
YCBH-80A pump is used for transporting gasoline,diesel,kerosene and other light oil etc. It is made of aluminum low-pressure casting. Mechanical seal on the main shaft improves sealing performance, built-in overflow hole prevent excessive pressure. It is not only be used for loading and unloading for oil depot, but also for motor refueling vehicles and tank trucks. Pump rotation is left or right.
Feature
Technical Specification
| Model | YCBH-80A |
| Diameter: | 3" |
| Flow Rate: | 700L/Min |
| Head: | 26M |
| Speed: | 1450R/Min |
| Power: | 5.5KW |
| Material: | Aluminum |
| Net Weight: | 17kgs |
| Gross Weight: | 20kgs |
| Packaging Size | 47Χ37Χ28cm |
|
