| Categories | Stainless Steel Pressure Regulator |
|---|---|
| Brand Name: | Yunyi |
| Model Number: | CP32 |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | US$8.9 - US$19.8 |
| Payment Terms: | D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 Piece/Pieces per week |
| Packaging Details: | Standard carton box |
| Medium: | various gas liquids such as steam, hot water, high temperature oil, air |
| Fluid temperature: | PTFE: -20°C ~ 200°C VITON : -10°C ~120°C |
| Working pressure: | 0.05 ~ 1.60MPa |
| Valve body material: | brass or stainless steel |
| Connection size: | G or NPT thread, 3/8”, 1/2”, 3/4”, 1” 1 1/4”, 1 1/2”, 2” |
| Diameter (mm): | DN 12, 15, 20, 25, 32, 40, 50 25F, 32F, 40F, 50F flange connection |
| Optional voltage: | DC: 12V, 24V AC: 220/230V 110/120V 24V 50/60HZ |
| Coil type: | S21H, 22VA(AC), 14W(DC), IP65, 100%ED |
| Company Info. |
| Xi'an Yunyi Instrument Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

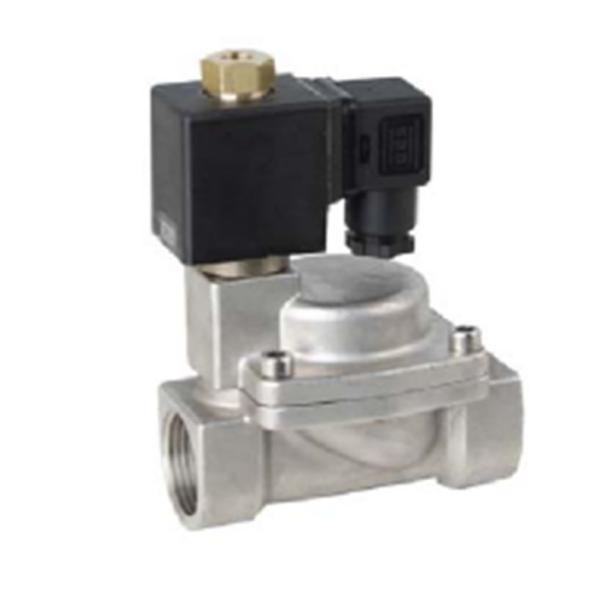

Description High temperature steam Threaded stainless steel steam hydraulic pneumatic solenoid valve
There is a closed cavity in the solenoid valve, with through holes at different positions, each hole is connected to a different oil pipe, the middle of the cavity is a piston, and the two sides are two electromagnets. Which side of the magnet coil is energized will be attracted to the valve body At the same time, by controlling the movement of the valve body to open or close different oil discharge holes, and the oil inlet hole is normally open, the hydraulic oil will enter different oil discharge pipes, and then the piston of the oil cylinder is pushed by the pressure of the oil, and the piston is again Drive the piston rod, and the piston rod drives the mechanical device. In this way, the mechanical movement is controlled by controlling the current on and off of the electromagnet.
Specification High temperature steam Threaded stainless steel steam hydraulic pneumatic solenoid valve
| Use medium: | various gas liquids such as steam, hot water, high temperature oil, air, etc |
| Fluid temperature: | PTFE: -20°C ~ 200°C VITON : -10°C ~120°C |
| Working pressure: | 0.05 ~ 1.60MPa |
| Valve body material: | brass or stainless steel sus304 (sus316 material is available), it is recommended to use stainless steel body products, which can improve the unreliability of the solenoid valve due to thermal expansion |
| Connection size: | G or NPT thread, 3/8”, 1/2”, 3/4”, 1” 1 1/4”, 1 1/2”, 2” |
| Diameter (mm): | DN 12, 15, 20, 25, 32, 40, 50 25F, 32F, 40F, 50F flange connection |
| Optional voltage: | DC: 12V, 24V AC: 220/230V 110/120V 24V 50/60HZ |
| Coil type: | S21H, 22VA(AC), 14W(DC), IP65, 100%ED |
Material of High temperature steam Threaded stainless steel steam hydraulic pneumatic solenoid valve
Valve body: brass or stainless steel 304 Seal: PTFE or Viton
Piston: stainless steel 304 Piston ring: Graphite PTFE
Movable and fixed iron core: stainless steel 1J117 Magnetic
isolation tube base and tube: stainless steel 304 Iron core spring
and other accessories: stainless steel 304
Parameters High temperature steam Threaded stainless steel steam hydraulic pneumatic solenoid valve
CP32 series. Normally open S21H coil. Maximum pressure 1.60MPa thread connection
| Model No. | CP3212X X X | CP3215XX X | CP3220XX X | CP3225XX X | CP3232XX X | CP3340XX X | CP3250XX X |
| Length(A) | 75 | 75 | 83 | 100 | 130 | 130 | 155 |
| Width(B) | 48 | 48 | 60 | 72 | 96 | 96 | 122 |
| height(C) | 118 | 118 | 127 | 140 | 140 | 140 | 149 |
| Connection Distance(D) | 13.5 | 13.5 | 16.5 | 25 | 28 | 28 | 34 |
CP32 series. Normally open S21H coil. Maximum pressure 1.60MPa Flange connection
| Model No. | CP3225FXXX | CP3232FXXX | CP3240FXXX | CP3250FXXX |
| Length (A) | 130 | 160 | 160 | 190 |
| Width (B) | 115 | 140 | 150 | 165 |
| Height(C) | 175 | 187 | 187 | 200 |
| Connecting distance(D) | 57.5 | 69 | 75 | 82.5 |
Selection Guide High temperature steam Threaded stainless steel steam hydraulic pneumatic solenoid valve
|
