Overview of desktop attenuators

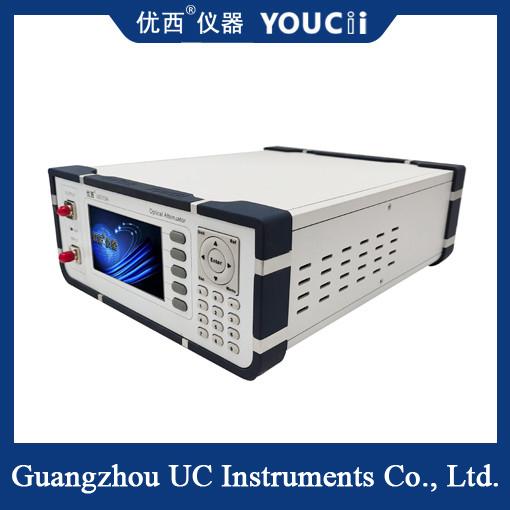

U8310A benchtop optical attenuator is a high-precision, wide-range optical power attenuator. A new data acquisition and processing method is adopted, which has a larger signal-to-noise ratio, faster response speed, and can reach a large continuous tunable dynamic attenuation range of 0 ~ 60 dB.

U8310A benchtop optical attenuator is mainly used for channel balancing, power balancing, gain slope and power adjustment of DWDM systems, as well as optical measurement and application of AWG & PLC components, optical amplifiers and other general purpose optical fibers.

U8130A Multichannel DFB laser source is a high stability, compact-sized, fast-starting, and affordable optical laser source. It provides Multichannel high performance, fixed wavelength output. Any two or four and more of the following channels can be provided on request: 850, 980, 1250, 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, or 1625 nm and etc.

Specification

Note: Single mode/multi-mode can be assembled as four channels, model: U8314 / U8324, the performance index is the same as that of single channel.

Host front view

The optical output interface and optical input interface are FC/PC interfaces.

Host rear view
