Categories | Portable Diesel Fire Pump |
---|---|
Brand Name: | GET |
type: | diesel engine fire pump |
suction/discharger port diameter mm(inch): | 50(2'). 80(3'). 100(4'). 150(6') |
discharge capacity(m³/h): | 30 40 110 150 |
total head lift: | 25m 26m 22m 20m |
self-priming time (s/4m): | 80 120 180 180 |
max suction head: | 8m 8m 8m 6m |
rotation speed (r/min): | 3600 |
noise level db(A)/7m): | 85 |
overall dimension(mm): | 510x455x640. 560x455x655. 650x470x700. 770x574x785 |
dry weight: | 44kg 50kg 71kg 95kg |
engine model: | GET173F GET178F GET186FA GET192F |
rated power: | 2.8kw 4kw 6.3kw 8.5kw |
fuel consumption g/kw.h: | 288 285 281 281 |
displacement (cm³): | 247 296 418 498 |
starter system: | recoil starter |
fuel tank capacity: | 13.5L |
continuous working period: | 10hr 10hr 8hr 8hr |
Place of Origin: | China |
Certification: | ISO CE |
Price: | Negotiable |
Delivery Time: | 15-20 workdays |
Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
Company Info. |
Wuxi Guangertai Power Machinery Co.,Ltd |
Verified Supplier |
View Contact Details |
Product List |

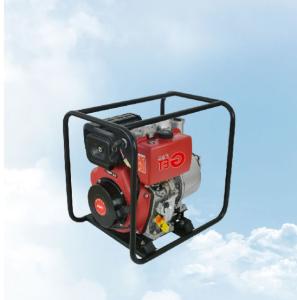

GET Diesel Engine Fire Pump Diesel Engine For Fire Fighting Pump
The portable fire pump is a lightweight and easy-to-carry fire pump suitable for some special or complex fire emergency scenarios. The following are some application scenarios for portable fire pumps:
1. Rural and remote areas: In rural and remote areas, firefighting resources are limited and firefighting vehicles are difficult to reach. Portable fire pumps can be easily carried to these areas to provide emergency water sources and fire-extinguishing capabilities, helping local residents carry out initial fire fighting.
2. Temporary fire protection systems: Portable fire pumps can be used to set up temporary fire protection systems, especially where there is a lack of fixed water sources or where traditional fire protection equipment is not available. With portable fire pumps, water can be pumped from nearby water sources to establish a temporary water source system to support firefighting efforts.
3. The portability and high-pressure capability of the portable fire pump make it an important fire-fighting equipment, which can provide emergency fire-fighting support in special environments and protect people's lives and property.
Model | JBC6/10 |
Type | vacuum pump |
Max.Flow(T/h) | 48 |
MAX.Lift(m) | 60 |
Rated Speed(rpm) | 3600 |
Water Shot Height | 35m |
Engine | 190F |
Maximum Suction Height(m) | 7 |
Self-priming Time(S) | 20 |
Discharge Port Diameter(mm) | 65 |
N.W/G.W(KG) | 91/100 |
Dimensions(mm) | |
Loading Qty(20GP/40HQ) | |
Model | JBC6/15 |
Type | vacuum pump |
Max.Flow(T/h) | 54 |
MAX.Lift(m) | 80 |
Rated Speed(rpm) | 3600 |
Water Shot Height | 35 |
Engine | 192 |
Maximum Suction Height(m) | 7 |
Self-priming Time(S) | 20 |
Discharge Port Diameter(mm) | 65 |
N.W/G.W(KG) | 94/103 |
Dimensions(mm) | |
Loading Qty(20GP/40HQ) |
![]() |
