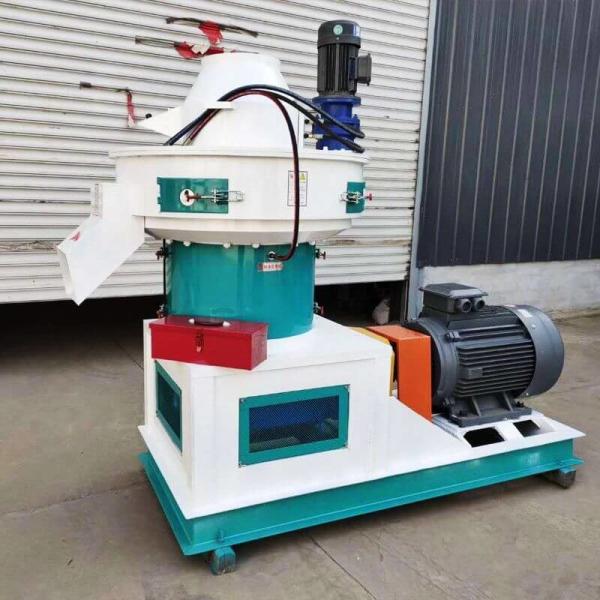

CE 10mm Small Wood Pellet Mill With Automatic Lubrication System

wood pellets line/wood pellet machine/biomass pellet mill line price wood pellet mill with CE hot sale

Description

The production process of wood pellet machine includes three steps of crushing, drying and molding, and the process is as follows:

1. Raw material crushing:

Using the cutting principle of the cutter head and the principle of hammering, the wood is directly processed into sawdust. The size of the sawdust can be adjusted through the screen, and the filtered sawdust flows out from the bottom of the screen. The operation is simple and the production efficiency is high.

2. Drying:

The material is heated in the drying room to about 50-70°C and enters the airflow drying room for heat exchange, and the temperature can reach above 100°C; the material falls in a fluffy shape in the drying room (that is, boiling drying), and further evaporates water in the hot air flow , and then filtered through the filter bag to discharge the finished product. If it is necessary to further reduce the dust content of the tail gas and use the induced draft fan, install a dust collector.

If you buy it to heat your home, sawdust moisture is high, it is recommended to mix some dry sawdust or directly in the yard to dry. When sawdust moisture is between 12%-20%, that's ok.

3. Granulation:

When the granules are cooled to the point that they are not sticky to the hands, they are released from the mold hole and become granule products with uniform particle size.

Due to the advantages of low investment and low energy consumption, the equipment is widely used in the mechanism charcoal industry and biomass energy industry and other users who need to produce various fuels.

Main Performance Characteristics of Wood Pellet Mill:

1. The middle frame adjustment is adopted, and the two rollers bear the balance force to ensure the pressing ability;

2. Equipped with a heavy-duty industrial reducer, which effectively improves the life of the equipment;

3. With a variety of apertures 1-10mm, it is suitable for different raw materials and ensures the granulation capacity;

4. Equipped with an automatic lubrication system to ensure the machine works longer and extend the service life of bearings

and gears.

Specification of Roller Rotate Wood Pellet Mill
