Automatic Magazine PCB Loader And Unloader For Smt Assembly Line

Categories PCB Loader And Unloader
Brand Name: HONREAL
Model Number: HR-250XL
Certification: CE
Place of Origin: CHINA
MOQ: 1set
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100SET/Month
Delivery Time: 10-20Workdays
Packaging Details: Woodencase
PCB loading time: Approx 6 seconds
Magazine change-over time: Approx 30 seconds
Transport direction: Left to right/right to left(optional)
Transport height: 900±20mm(or customized)
Air pressure: 4-6 bar, MAX 10L/minute
Power supply: 100-230V AC(customized) single phase, MAX 300V/A
PCB size (L×W)~(L×W)mm: (50x50)~(350x250)mm
Machine size (L×W×H)mm: 1700×750×1200mm
Magazine size (L×W×H)mm: 355×320×563mm
Weight: 130kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

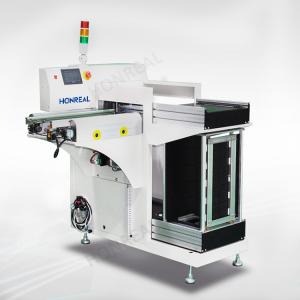

Automatic Magazine PCB Loader And Unloader For Smt Assembly Line

China Factory Automatic Smt Magazine L Shape Handling Unloader With Magazine Rack For Smt Assembly Line


Product introduction:

1.This equipment is used to collect PCBs into magazine at the end of SMT production line

2.Stable and reliable PLC control system;

3.Easy to operate LED touch screen control interface;

4.The pneumatic clamps of top and bottom three point provided for the magazine alignment;

5.Effective thrust design can ensure the PCB is unbroken;

6.2magazines loading capability.

7.Direction from left to right or right to left(optional).

8.Machine always fault monitoring;

9.Solid and stable design;

10.SMEMA port is compatible;


Application

It is used in the end of SMT and AI production lines. It does not need to touch the PCB board by hand to better protect the PCB board. The PCB Unloader automatically collects the PCBs from production line to PCB magazines. It can also set the function of starting push plate layer/layer push plate; this machine has the functions of high lifting precision, automatic counting, fault alarm, alarm information prompting, etc. It is an essential equipment for realizing full line automation.


Technical parameters


FunctionThis equipment is used to collect PCBs into magazine at the end of SMT production line

PCB thickness


Min0.6mm

Magazine number


Transport up:1pcs,transport down:1ps,(or customized)

Step pitches select


1-4(10mm step pitches)

PCB loading time


Approx 6 seconds

Magazine change-over time


Approx 30 seconds

Transport direction


Left to right/right to left(optional)

Transport height


900±20mm(or customized)

Air pressure


4-6 bar, MAX10L/minute

Power supply


100-230V AC(customized) single phase, MAX 300V/A

Specifications


Model No


HR-250XLHR-330XLHR-390XLHR-XB460XL
PCB size (L×W)~(L×W)mm(50x50)~(350x250)(50x50)~(455x330)(50x50)~(530x390)(50x50)~(530x460)
Machine size (L×W×H)mm1180×1130×12001300×1420×12001500×1530×12001500×1630×1200
Magazine size (L×W×H)mm355×320×563460×400×563535×460×570535×530×570
Weight170kg150kg170kg185kg

Who We Are ?
Shenzhen Honreal Technology Co.,Ltdis a national high-tech enterprise,Specializing in smt equipment research and development, production, sales. Services for the world´s top 500 electronic companies.The registered capital of the company is 5 million.Havingexperienced technical team andexcellent technical innovation ability, Creating a better product supply chain and service team and meeting different customer needs is our long-term goal. We will meet customer needs by understanding customers, putting them first and providing valuable services.



Certification

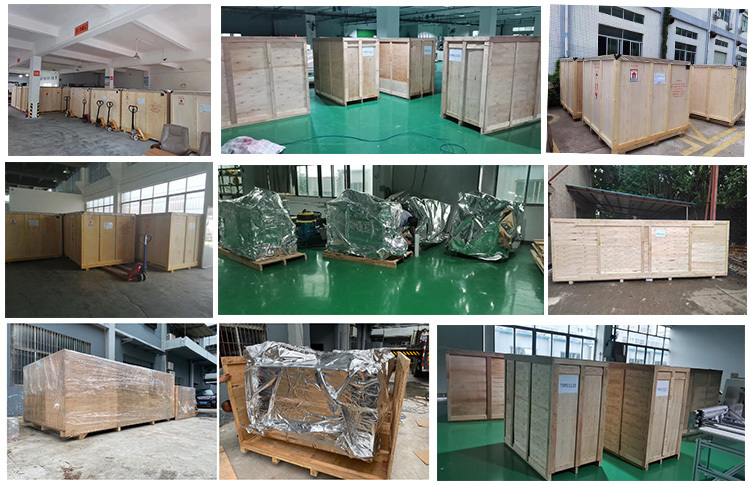

Packing
