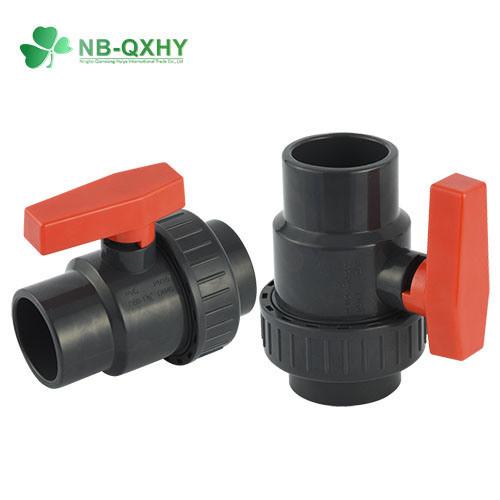

| Categories | PVC Ball Valve |
|---|---|
| Model NO.: | QX |
| Structure: | Fixed Ball Valve |
| Type: | Fixed Ball Valve |
| Function: | Shutoff |
| Temperature: | Normal Temperature |
| Standard: | DIN, ANSI, NPT, BSPT |
| Application: | Industrial Usage, Water Industrial Usage, Household Usage |
| Color: | Light Gray, Deep Gray, Black, White |
| Standard Like: | DIN, BSPT, ASTM, ANSI |
| Quality: | EPDM Rubber+PVC Ball+PVC Handle, High Thickness |
| Package: | Plastic Bag Each One, Stron Export Carton |
| Feature: | New Fashion Handle, Easy Use, Long Service Life |
| Price: | Competitive Price |
| Certificate: | ISO9001,SGS |
| Transport Package: | Carton, Polybag, Color Box or Customized |
| Specification: | 1/2′, 3/4′, 1′, 1-1/4′, 1-1/2′, 2′, 2-1/2′, 3", 4" |
| Trademark: | QX |
| Origin: | China(Mainland) |
| HS Code: | 8481804090 |
| Supply Ability: | 70000 Piece /Month |
| Media: | Water |
| Material: | PVC |
| Connection Form: | Socket or Threaded |
| Driving Mode: | Manual |
| Nominal Pressure: | Pn10, Pn16 |
| Channel: | Straight Through Type |
| Samples: | US$ 3/Piece 1 Piece(Min.Order) | Request Sample |
| Customization: | Available | Customized Request |
| MOQ: | 1pc |
| Packaging Details: | Customized |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C,T/T |
| Company Info. |
| Ningbo Qianxiang Huiya International Trade Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| NO. | PART | Material | QTY |
| 1 | Body | UPVC,CPVC | 1 |
| 2 | Stem O-Ring | EPDM,FPM (NBR) | 2 |
| 3 | Stem | UPVC, CPVC | 1 |
| 4 | Ball | UPVC,CPVC | 1 |
| 5 | Seat Seal | TPE,TPV,TPO | 2 |
| 6 | Carrier O-Ring | EPDM,FPM (NBR) | 1 |
| 7 | Seal Carrier | UPVC CPVC | 1 |
| 8 | Union O-Ring | EPDM,FPM (NBR) | 1 |
| 9 | End Connector | UPVC,CPVC | 1 |
| 10 | Union Nut | UPVC,CPVC | 1 |
| 11 | Handle | PVC | 1 |
| SIZE | DIN(MM) | BS(MM) | JIS(MM) | ANSI(MM) | NPT Thd./in | BSPT Thd./in | d | C | E | A | L | D |
| DN15 (1/2") | 20 | 22 | 22 | 21.34 | 14 | 14 | 15 | 56 | 79 | 63 | 76 | 28.8 |
| DN20 (3/4") | 25 | 26 | 26 | 26.67 | 14 | 14 | 20 | 60 | 90 | 72 | 87 | 35 |
| DN25 (1") | 32 | 34 | 32 | 33.4 | 11.5 | 11 | 25 | 69 | 103 | 75 | 101 | 43 |
| DN32( 1 1/4") | 40 | 42 | 38 | 42.16 | 11.5 | 11 | 30 | 80 | 122 | 85 | 114 | 52 |
| DN40(1 1/2") | 50 | 48 | 48 | 48.26 | 11.5 | 11 | 38 | 95 | 139 | 95 | 137 | 62 |
| DN50 (2") | 63 | 60 | 60 | 60.33 | 11.5 | 11 | 48 | 116 | 166 | 110 | 163 | 75.5 |
| DN65( 21/2") | 75 | 75 | 76 | 73.03 | 8 | 11 | 59 | 139 | 192 | 128 | 198 | 88.5 |
| DN80 (3") | 90 | 89 | 89 | 88.9 | 8 | 11 | 72 | 170 | 235 | 139 | 230 | 106 |
| DN100 (4") | 110 | 114 | 114 | 114.3 | 8 | 11 | 96 | 210 | 277 | 160 | 274 | 131 |
(1) High pressure can stand: PN10, PN16, PN35, PN40; 150psi, 235psi etc, as customers' request;
(2) Well and high quality control, within 1% leakage;
(3) Environment friendly, non-toxic, good looking and long service life;
(4) Light weight, easy to handle and transport;
(5) Soft colors and excellent design, suitable for installation either exposed or hidden;
(6) Wonderful ability in chemical corrosion resistance;
(7) Easy and fast installation, making cost minimized;
(8) Widely used in building, irrigation, industry and swimming pool;
(9) Small order acceptable;
(10) Customer's design and logo are welcome.
Why Us?(1) We provide OEM service and submit Various styles, latest designs to our clients;
(2) We work with big customers in Southeast Asia, Africa, Middle East, North America, South America;
(3) According to the needs of customers in different regions, we
match different quality and thickness valves with various styles,
so that our customers are very competitive in the market!
(4) Our high quality PVC valve can be consistent with European and
American national brand valves!
(5) We have great experience on providing high quality products and
most professional service to clients about 10 years more!
(6) Customers choose our products, can mix and match our PVC pipe
fittings, PVC butterfly valves, PP Fittings, irrigation products to
buy together, so that the customer product line is more abundant,
both quality and delivery time are guaranteed.
(7) We can flexible from China any port export! Welcome you inquiry
us!
|
