| Categories | Wire Peeling Machine |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | Yihan |
| Model Number: | YH-8515, YH-8515 |
| Usage: | Stripping, Stripping |
| Line diameter range: | 1.5-15mm |
| Stripping length: | 0.1-85mm |
| Unit of cutting depth: | 0.01mm |
| Max.layers of wire stripping: | 9 layers |
| Drive mode: | Touch screen |
| Display mode: | Motor/ball screw drive |
| Blade: | 4pcs |
| Centering slice: | 4pcs |
| Packaging Details: | wooden package |
| Price: | $6,880.00/sets 1-1 sets |
| MOQ: | 1 set |
| Company Info. |
| Yihan (shenzhen) Automation Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

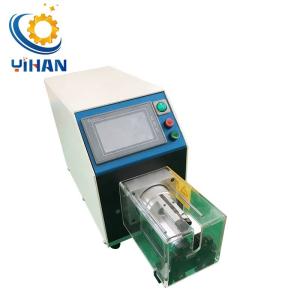

YH-8515 Coaxial wire stripping machine
FEATURE:

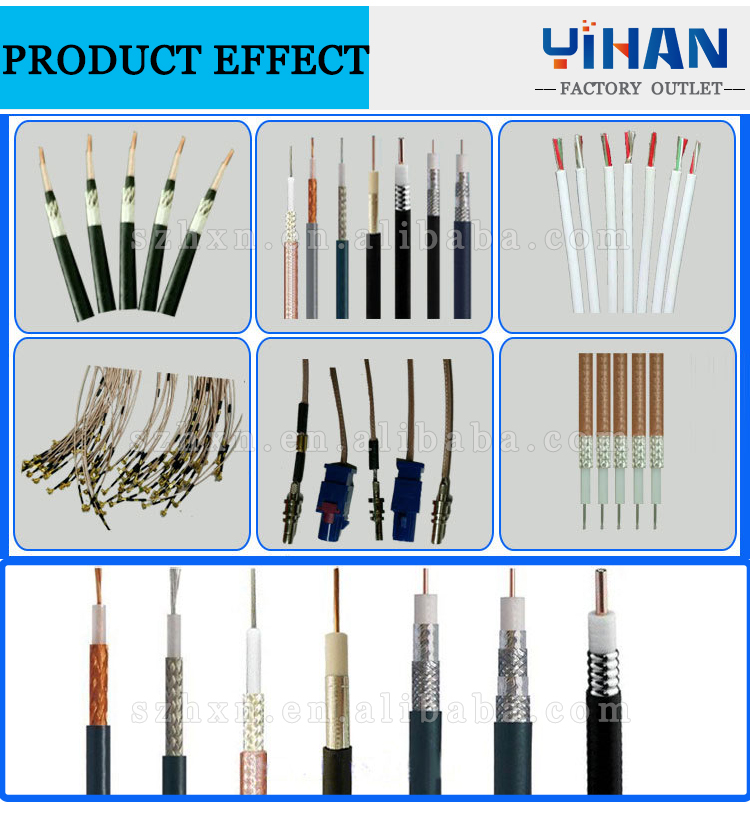

1. Mainly used for the processing of coaxial cables and special single wires, using the most advanced rotary tool holder to improve accuracy and speed.
2. LCD display.
3. With a specific axis positioning device and a rotary tool method, up to 9 layers can be stripped.
4. Corresponding to various sizes and sheath wires without changing the blade.
| Model | YH-8515 |
| Max cable diameter | 1.5-up to 15mm |
| Cutting Unit Depth | 0.01mm |
| Max Stripping Length | 85mm |
| Max Stripping layers | 9 layers |
Drive mode | ball screw drive |
| Display method | Touch screen |
| Blade/Material | 4pcs/Tungsten steel |
| Centering piece/Material | 4pcs/Tungsten steel |
| Clamp devices | Self-aligning, force controlled by program |
| Productivity | 400-600pcs/h(Depending on the length and types of cable ) |
| Boot mode | Manual / padaling(optional) |
| Supply power | 220V/50HZ/60HZ |
| Rated power | 190W |
| Weight | 34KG |
| Dimensions | 640X230X330 mm |
| Working environment | 0-50 degrees, moderate drying, vibration-free work surface, moderate dryness workshop |
|
