| Categories | Bently Nevada Vibration Monitoring System |
|---|---|
| Brand Name: | Bently Nevada |
| Model Number: | TK-3E 177313-01-01-00 |
| Certification: | CE |
| Place of Origin: | USA |
| MOQ: | 1pc |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
| Delivery Time: | 12-16weeks |
| Packaging Details: | standard carton packing |
| Electric: | 95-125 Vac, 50/60 Hz, 1A minimum 190-250 Vac, 50/60 Hz, 1A minimum |
| Air: | 90 psi (6.2 bar) maximum |
| Vibration Amplitude Range:: | 50 μm to 254 μm (2 to 10 mils) peak-to-peak. |
| Spindle Micrometer Range: | 0 – 25.4 mm (0 – 1000 mils). |
| Physical Size: | 299 mm*248mm*195 mm |
| Weight: | 5.22 kg |
| Operational Temperature Range: | 0 °C to 50 °C |
| Storage Temperature Range: | -18 °C to 65 °C |
| Company Info. |
| SC Automation Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
Description

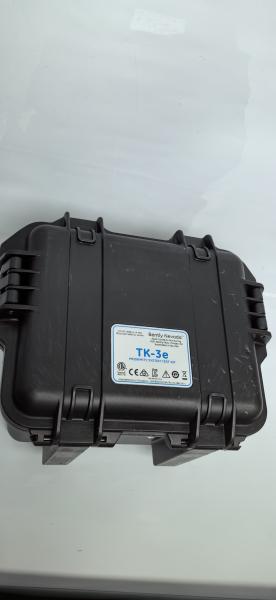

The TK-3 Proximity System Test Kit simulates shaft vibration and position for calibrating Bently Nevada monitors. It verifies the operating condition of the monitor readouts as well as the condition of the proximity transducer system. A properly calibrated system ensures that the transducer inputs and the resulting monitor readings are accurate.
The TK-3 uses a removable spindle micrometer assembly to check the transducer system and position monitor calibration. This assembly features a universal probe mount that will accommodate probe diameters from 5 mm to 19 mm (0.197 in to 0.75 in). The mount holds the probe while the user moves the target toward or away from the probe tip in calibrated increments and records the output from the Proximitor Sensor using a voltmeter. The spindle micrometer assembly also features a convenient magnetic base for ease of use in the field.
Ordering Information
Electric Driven TK-3e
177313-AA-BB-CC
A: Scale Units | |
01 | English |
02 | Metric |
B: Power Cord Type | |
01 | American |
02 | European |
03 | Brazilian |
C: Agency Approvals | |
00 | None |
Air Driven TK-3g
177314-AA-BB
A: Scale Units | |
01 | English |
02 | Metric |
B: Agency Approvals | |
00 | None |
Related Part Number:
16710-30 | 177230-01-01-CN | 991-25-50-01-00 |
21000-28-05-00-024-03-02 | 177313-02-02-00 | 330106-05-30-05-02-00 |
190501-00-00-CN | 190501-00-00-CN | 330106-05-30-05-02-CN |
200200-05-05-CN | 200151-060-03-00 | 330106-05-30-10-02-00 |
330101-00-25-05-01-CN | 200152-150-02-10 | 330106-05-30-10-02-CN |
330103-00-05-10-01-00 | 200200-05-05-CN | 330130-080-00-00 |
330105-02-12-10-02-00 | 330101-00-16-10-02-CN | 330130-040-00-00 |
330180-91-CN | 330101-00-25-05-01-CN | 330130-040-00-CN |
330190-085-00-00 | 330102-00-17-10-02-CN | 330130-080-01-00 |
330195-02-12-05-00 | 330102-02-12-10-02-00 | 330130-045-00-CN |
330400-01-CN | 330103-00-05-10-01-00 | 330130-045-01-00 |
330400-02-CN | 330103-00-08-05-02-CN | 330130-075-01-CN |
330901-00-90-10-02-CN | 330103-00-08-05-02-CN | 330130-085-00-CN |
990-04-70-01-00 | 330103-00-12-15-02-CN | 330180-51-00 |
990-05-50-01-00 | 330104-00-06-05-01-CN | 330902-02-12-05-02-CN |
990-05-70-02-00 | 330104-00-08-05-02-CN | 330907-05-30-10-02-00 |
330180-91-00 | 330930-040-00-00 | 330130-045-03-00 |
|
