| Categories | Backhoe Excavator Loader |
|---|---|
| Place of Origin: | Shandong, China |
| Certification: | ISO9001,CE,EAC |
| MOQ: | 1 |
| Price: | negotiate |
| Packaging Details: | standard packaging |
| Delivery Time: | 5-8 day |
| Payment Terms: | negotiate |
| Machinery Test Report: | Provided |
| Video outgoing-inspection: | Provided |
| product name: | Backhoe loader |
| Applicable Industries: | Construction works |
| Condition: | Good Performance |
| Type: | Backhoe Loader, Front Loader, Mini Loader |
| Company Info. |
| Shandong Weimeng Construction Machinery Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

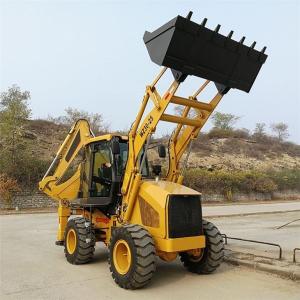

WZ30-25 backhoe excavator loader is designed for agriculture,engineering or municipal projects.There are two types of WZ30-25 backhoe excavator loader.One is slide shift backhoe and the other is center mount backhoe or center pivot backhoe.The center mount backhoe has the backhoe mounted at the center of its rear frame.The advantage of this type is that it is more stable than the slide shift type because this design reportedly provides a wider stance and more ground clearance,making it ideal for sloped terrain and heavy loads but it needs more space.When the backhoe is close to building or some immovable objects,this type backhoe cannot play its part.However,when the backhoe is on a slope,the center mount type is much more stable and safe as it is not easy to tilt.
| Overall dimension | Operating Weight | 7600KG |
| Overall dimension(L×W×H) | 5654×2365×3764mm | |
| Wheel base | 2415mm | |
| Wheel tread | 1848mm | |
| Ground Clearance | 300mm | |
Performance | Loader bucket capacity | 1.0m³ |
Loader breakout force | 47KN | |
Loader lifting capacity | 2500KG | |
Loader dumping height | 2780mm | |
Loader dumping reach | 1112mm | |
Loader digging depth | 52mm | |
Backhoe bucket capacity | 0.3m³ | |
Backhoe bucket digging force | 50KN | |
Backhoe swing angle | 180° | |
Backhoe dumping height | 3820mm | |
Backhoe max digging depth | 4060mm | |
Max. traction force | 52KN | |
Engine | Model | Yuchai YC4A105Z-T20 |
Type | Turbocharging four-stroke | |
Cylinder-inner diameter*stroke | 4-108×132 | |
Rated power | 75KW/100HP | |
Rated speed | 2200r/min | |
Min. Fuel consumption | 230g/kw.h | |
Max.torque | 400N.m | |
Displacement | 4.8L | |
| Steering system | Type | Hydraulic Steering |
| Diverter model | BZZ5-250 | |
| Pump delivery | 63ml/r | |
| Steering angle | ±36° | |
| Min. turning radius | 5590mm | |
| Driving axle | Model | ZL28 |
| Manufacturer | China axle | |
| Max. load of front axle | 12.3 ton | |
| Max. load of rear axle | 12.3 ton | |
| Transmission | Gearbox | Mechanically Operated Hydraulic Synchrinized Shift |
| Model | ZL15 | |
| Gears | 2 forward and 2 reverse gears | |
| Hydraulic torque converter | YJ280 | |
| Inlet pressure | 0.4-0.65Mpa | |
| Outlet pressure | 1.5-1.8Mpa | |
| Cooling mode | oil-cooling presssure circulation | |
| Pump delivery | 40ml/r | |
Wheel | Front wheel size | 16/70-20 |
Rear wheel size | 16/70-20 | |
Front tire pressure | 0.35Mpa | |
Rear tire pressure | 0.35Mpa | |
Travel speed | 22Km/h | |
| Brake system | Service brake | Air over oil caliper, external, self-regulation, self-balance |
| Parking brake | Manual brake | |
| System pressure | Loading hydraulic system | 19Mpa |
| Digging hydraulic system | 19Mpa | |
Steering hydraulic system | 14Mpa |
|
