420w Mono Solar Panel Monocrystalline 12 Volt Flexible Solar Panel For RV Boat Marine

Categories Mono Solar Panel
Brand Name: AHONY or OEM
Model Number: eGo S420M
Place of Origin: Guangdong, China
Packaging Details: 1pcs/Polyethylene foam(EPE Foam),then in 1 carton box
Supply Ability: 6000 Piece/Pieces per Month
MOQ: 10 pieces
Price: $260.40/pieces 10-99 pieces
Product name: 420W solar panel flexible solar panel
Cell size: 158.75mmx158.75mm
Panel Dimensions: half cut 1000*2010*2 mm
Panel Efficiency: 22.7%
Application: RV boat Marine
Solar cell: 158.75mmx158.75mm
Certificate: CE ROHS ISO
Max bend angle: 60 degree
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

420w Mono Solar Panel Monocrystalline 12 Volt Flexible Solar Panel For RV Boat Marine

420w Flexible Solar Panel 12V Monocrystalline Semi-Flexible For Camp Marine RV Roof Cold Chain Car

Product Description

1. latest generation 24% Solar Cell Efficiency


Premium quality bificial HJT solar cells,latest technology.Bificial cell increase 10%-20% power using transparent backsheet.


2. MBB technology less power loss

9BB multi busbar technology on both sides,distance between 2 bus bar less,less resistance and more current even through cell crack.


3. 3.22kg/m ultralight material

Ultralight,1.6kg only for 100w and 3.22kg per square meter.


Model No.eGo S420M
Product Namesemi flexible solar panel
Maximum Power[Wp]420
Solar CellMonocrystalline solar cell
Cell Array[Pcs]6*10
Cell Efficiency22.7%
Size[mm]half cut 1000*2010*2
Max Power Voltage Vmp[V]34.2
Max Power Current Imp[A]12.28
Open Circuit Voltage Voc[V]40.01
Short Circuit Current Isc[A]12.96
Net.Weight[kg]9.24
Power tolerance[%]±5%
NOCT[℃]45±2
Operating Temperature[℃]-40/+85
Temperature Coefficient Pmax[%/℃]-0.41
Temperature Coefficient Voc[[%/℃]-0.32
Temperature Coefficient Isc[[%/℃]0.04
Maximum System Voltage[V]1000 V
Maximum Reverse Current[A]IR<2A-0
CertificationCE ROHS
Surface/BacksheetETFE+AP2

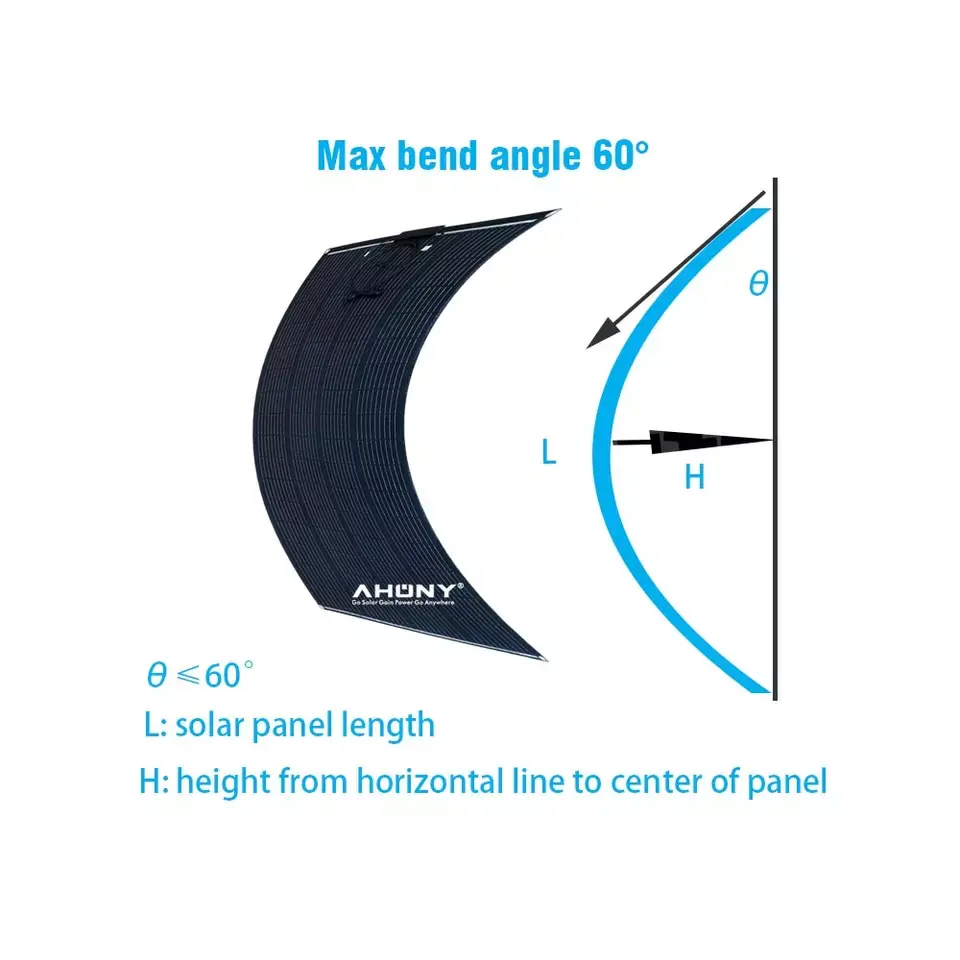

Maximum bend radius(θ)60°
Cables and ConnectorsJbox IP65,0.9m cable and 1 pair of MC4 connector
Standard Test ConditionsSTC: 1000W/m², AM 1.5 and cell temp 25°C
Other notesround corner R10,with eyelets
Package1pcs/Polyethylene foam(EPE Foam),then in 1 carton box

Flexible solar panel
