Thin Shaped Mono Diamond Nano Powder For Corrosion Resistant Additive

Mono Diamond Thin -Shaped Nano Diamond For Corrosion Resistant Additive

Single crystal nano diamond plate

Single crystal nano diamond plate is a newly developed nano -diamond stone, and its appearance is thin plate -shaped, and it is a single crystal structure.

The thin -shaped nano diamond has a good decentralized stability in the water -based system and the oily system, and the ratio of the size to the thickness

of the diamond is large, so it has a good cover effect.

nano -diamonds have the excellent characteristics of stable chemical properties, acid resistance, and alkali resistance.

At high temperatures, they do not respond to all acid substances at high temperature. In addition, it can also improve

the mechanical properties of the entire coating. At thesame time, the coating has a self -cleaning effect.

The water is not easy to attach to the coating. It will automatically fall off from the coating in the form of water droplets.

The applications of the nono thin-shaped diamond

1) Transparent wear -resistant coating

2) Aluminum and magnesium corrosion resistance coating

3) Silver plate anti -corrosion

4) Deep Sea corrosion resistance

5) Add in epoxy resin

6) Add in ink

The details of the specific features are as follows:

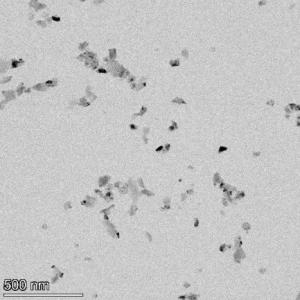

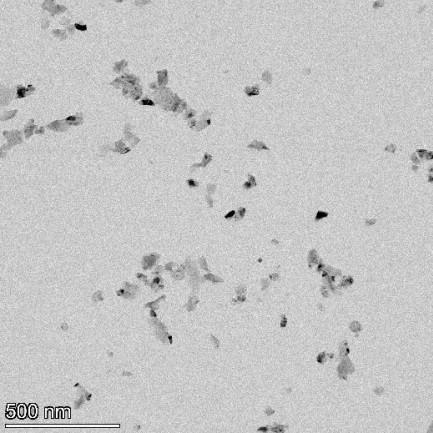

Transmission electron microscopy (TEM)

1) D50=147nm

2) D50=95.9nm

From the results of TEM's characteristics, The appearance of D50 in 185nm, 147nm, 95.9nm, and

65.9nm and 35.94nm all are thin-plate shape, with good decentralization, uniform particle size,

The SAED characteristic results are displayed as a single crystal structure, and the HRTEM character

results indicate that the material is very good crystalline, measure the lattice spacing of the lattice

D (111) surface of the lattice D (111) phase D (111) same.

X-ray diffraction (XRD)

Available size

We are able to customize according to your requirement.

Fourier Transform Infrared Spectrometer (FTIR)

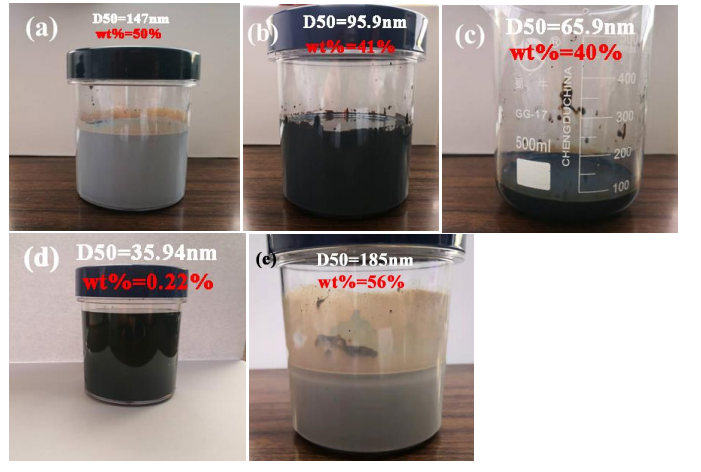

Thin -type nano diamond is a mud paste suspension form, which can maintain long -term suspension
There will be no precipitation.
Sample provision form: mud paste or dry powder.

Shaper Diamond Technology Co., Ltd. was established in 2008 in Zhuzhou City, Hunan Province, China. Since its inception, the company has been dedicated to researching, developing, producing, and selling HPHT synthetic diamond and superhard material products. Over the years, Shaper Diamond has continuously invested in technology and equipment, enabling the company to achieve leading status in the industry.

Advantages:

1. Strong technical force: Shaper Diamond has a professional team composed of highly skilled technical experts. The company has also independently developed a number of patents related to HPHT synthetic diamond and superhard material production technology.
2. Advanced equipment: Shaper Diamond has invested heavily in advanced equipment and facilities to ensure high-quality production. The company's equipment includes high-pressure and high-temperature synthesis equipment, precision diamond sawing machines, and diamond polishing machines.
3. Strong product strength: Shaper Diamond's products have high wear resistance, high hardness, low friction coefficient, and other characteristics. The company's products are widely used in the fields of machinery, tooling, mining, and other industries.
4. Excellent reputation: Shaper Diamond has always adhered to the concept of quality first and integrity-based business. The company has won a good reputation from customers at home and abroad through its excellent product quality and excellent after-sales service.

The products cover sawing grade diamond, abrasive grade diamond, dressing and machining grade large single crystal diamond, and gemstone grade diamond.
