dry and wet shotcrete machine with accessories

Categories Hydraulic- perfusion Foaming Machine
Place of Origin: China
Brand Name: China Coal
Price: 0-10USD
Packaging Details: according to your requirements
Delivery Time: 7 days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 100000sets/month
MOQ: 1 set
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

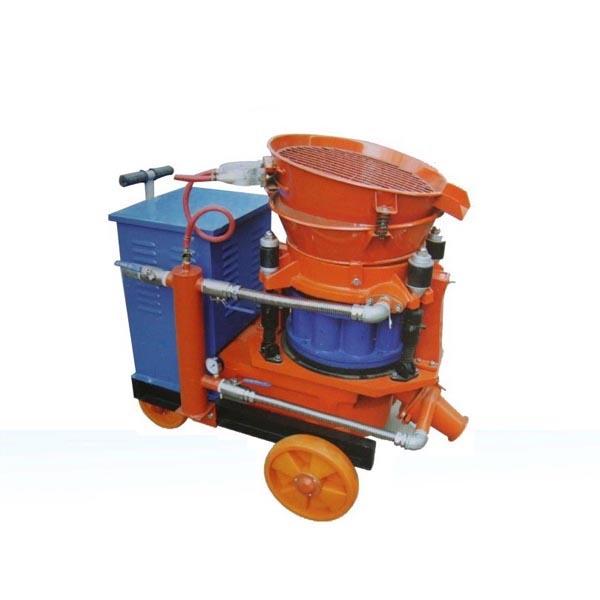

dry and wet shotcrete machine with accessories

Specifications chinacoal05

1)Explosion-proofing motor
2)simple structured;
3)high-effective


Product Introduction

Dry and wet Shotcrete machine with accessories

cement guniting machine


1.shotcrete machine widely used in coal mine roadway and high marshy mine,


construction,traffic tunnel and sprayed concrete construction work.


2.There are wet shotcrete machine, dry shotcrete machine, explosion proof shotcrete machine,


and spare parts.


Main Parameter


Item

ZMPZ-5

Output

5m3/h

Max. convey distance

Horizontal:200m Vertical: 20m

Suitable Mix Ratio (Cement/Sand)

1:3-5

Water/cement ratio of concrete

≤0.4

Max. Aggregate. Size

20mm

Hose inner size

51mm

Operating air pressure

0.4~0.6MPa

Air consumption

7-8 m3/min

Rotor diameter

438mm

Motor power

Y132m-6-5.5KW

Voltages

380v as your requirements

Overall dimension(mm)

1520x820x1280

Whole weight

600kgs

wheel

Nylon wheel or Rubber wheel


Item

HSP-5

Output

5 m³/H

Max. Convey dist

Horizontal:30m Vertical: 20m

Concrete proportion

1:4-5C/A

Water cement ratio

≤0.4

Hose inner size

Φ51m

Max. Aggregate size

15mm

Operating air pressure

0.3-0.6MPa

Air consumption

10-15m³/min

Spring rate level

≤10%

liquid accelerator metering pump

pneumatic

liquid accelerator add ratio

0.3-0.7%

main Electric motor power

Y132m-6-5.5KW

Voltages

380v as your requirement

Overall dimension(mm)

1520X820X1280

Whole weight

700kgs

Wheel

Nylon wheel or Rubber wheel


Cheap dry and wet shotcrete machine with accessories for sale
