15" Laptop ultrasound machine,4D B/W ultrasound doppler machine with 3.5MHz convex probe

Categories	ultrasound scanner
Place of Origin:	China
Brand Name:	SG
Certification:	CE
Model Number:	SG-S10P
mode:	Laptop
display:	15 inch high definition LED screen
computer based:	Powerful information management
Complete application software packages:	Compatible with laser/inkjet printers
DICOM:	built-in battery
Standard configuration:	with a 3.5MHz 4D probe
optional 1:	7.5MHz linear probe
optional 2:	6.5MHz Trans-vaginal probe
optional 3:	3.5MHz R20mm micro-convex probe
optional 4:	R40/60mm convex probe
warranty:	one year
MOQ:	1pcs
Packaging Details:	suitable box
Delivery Time:	2 weeks
Payment Terms:	T/T
Supply Ability:	500pcs/month

Contact Now

Add to Cart

Company Info.

SG Medical Devices company

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

15" Laptop ultrasound machine,4D B/W ultrasound doppler machine with 3.5MHz convex probe

15" Laptop ultrasound machine,4D B/W ultrasound doppler machine with 3.5MHz convex probe SG-S10P

Feature:
-4D imaging function
-15 inch LED screen, pretty, portable and light
-Full digital imaging technology, crystal-clear Image
-PC based, abundant functions
-Powerful image and report management
-Large volume storage image and cineloop
-DICOM display and transfer(optional)
-Compatible with laser/inkjet printers
-Built-in battery(Work 5 hours)

Specification:
-Monitor: 15 inch LED
-Display mode: B, B+B, B+M, M, 4B, 9B
-Image gray scale: 256 level
-Cine loop: Auto 256 frames, Manual, 4B/9B, Auto/Manual M, B/M
-Image storage: ＞50,000 frames
-Scan angle: 60-160 degrees, depending on probe
-Scan depth: 20mm～240mm
-Dynamic range: ≥100dB, 4-level adjustable
-Image flip: Up/down, left/right, black/ white, 90/180/270°
-Zoom: Continuously, real-time dynamic PIP
-Focus position: Adjustable
-Focal space: Adjustable
-Measurement: Distance, circumference, area, volume, angle, heart rate, time, velocity, residual urine, etc.
-Software packages: General, OB, GYN, cardiology, urinary, small organ
-Notation: Date, time, name, sex, age, doctor, hospital name, full screen notation
-Body mark: 43 types
-Peripheral port: Video, S-video, USB2.0, DICOM3.0, VGA
-Battery volume: 8,000mAh
-Power consumption (MAX): 75VA
-Dimension: 35.5*36.6*7.5 CM
-Net Weight: 5kgs

Standard Configuration:

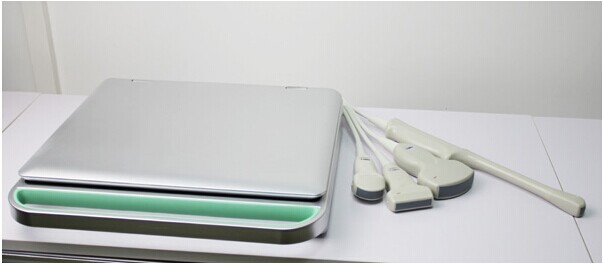

One Main Unit, One 3.5MHz/R40 volume probe, One Power adapter.

Optional:
Convex, Linear, Trans-vaginal, Micro-convex,Rectal Probe; DICOM3.0; Trolley; Laser Printer.
