Insulated Compressed MgO Hotlock Copper Coil Heaters with Thermocouple

Categories Coil Heaters
Brand Name: GME
Model Number: Coil Heater
Certification: CE & ISO
Place of Origin: China
MOQ: 20 pcs
Price: Negotiation
Payment Terms: L/C, D/P, T/T, Paypal, , T/T
Supply Ability: 11,000pcs per month
Delivery Time: 7-15 working days after received your payment
Packaging Details: Exported Case Packing
Product Name: Copper Coil Heaters
Application: Injection Mould
Lead Wire Length: 1000 mm or Customised
Insulated Materia: Comressed MgO
Max.Tempreture: 650℃
Power(W): 200-3000W
Dimension(L*W*H): customized
Warranty: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

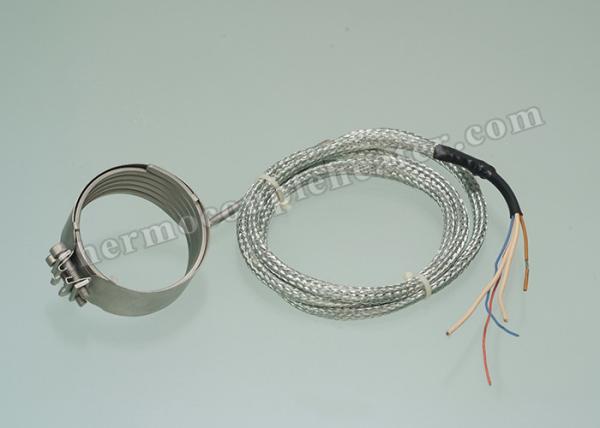

Insulated Compressed MgO Hotlock Copper Coil Heaters with Thermocouple

Hotlock Copper Coil Heaters with Thermocouple



1. Copper Coil Heaters Brief Introduction


  • Make the groove according to the heating distribution
  • Compatiable with many coil heaters
  • Mini interior diameter 6mm
  • Mini length of the brass tube 30mm
  • Thermocouple K or J available
  • Good performance in heating conducting


2. Copper Coil Heaters Characteristics

  • Standard sizes available with various cross section
  • Various Watt Density options available.
  • Robust Design with Choice of Terminal Exits
  • Designed for even heat profile
  • Precision fit on Hot Runner Nozzles & Manifolds
  • Highly Non-corrosive
  • Maximum heat transfer due to more contact area
  • Advanced Thermal Engineering
  • CE Certified
  • Available with built in Thermocouple


3. Copper Coil Heaters Parameter.


Standard Configuration
Material :304
Unheated length(L1):45mm
Connector(cold side)(D1xU): Ф3.5x40mm
Power lines,grounding wire length(L):1000mm
Surface treatment:sandblasting;


Spring coil heater (H series)

3.2x1.8

Φ1.8
Φ2.0

Φ2.5

4.2x2.2

Voltage

220V,230V,240V

Power tolerance 115W-200W

+/-10%

Power tolerance 201W-2000W

+5%-10%

Out jacket length

30mm~280mm

inside jacket diameter

10mm~42mm

Unheating length

45mm

Max power density

9W/cm²

Heating Length tolerance

+/-0.05mm

Unheating length tolerance

+/-2.5%

Tolerance ID d ≤20mm

0.05mm~0.10mm

Tolerance cross section

+/-0.10mm

+/-0.15mm

Thermocouple

K,J,E

None

K,J,E

Material

304,321,316

Maximum working temperature

650℃

Die electrical strength

600V

800V


4. Copper Heaters Coil Application


Hot Runner Nozzles & Bushings.
Hot runner Injection moulds
Injection & Blow Moulding Machine Nozzles.
PET prefrom & Thin wall container Moulds.
Hot Runner Manifolds.


5. Packing Information



6. Transportation
