| Categories | Water cooled water chiller |
|---|---|
| Place of Origin: | China |
| Brand Name: | MGREENBELT |
| Model Number: | MG-150WS |
| Certification: | CE |
| Price: | FOB Qingdao $15000~$30000 |
| Packaging Details: | Standard wooden case |
| Delivery Time: | Within 20 working days |
| Payment Terms: | T/T,D/A,D/P |
| Supply Ability: | 300 Sets/Months |
| MOQ: | 1 Set |
Factory Water Cooled 130ton Industrial Water Chiller System
Features description |
1)Different refrigerant available like R22,R407c,R134a,R410a |
2) Voltage/phase/frequency optional 1/3 phase-220/380/415/440/460V-50/60Hz; |
| 3)Compressor:Water cooled chiller adopt Bitzer/Germany,Hanbell/Taiwan,high performance; |
| 4)The Evaporator and condenser: shell and tube type,closed circuit loop, the evaporator can be titanium coil tube type or stainless plate type for corrosion product cooling. |
Application industries
Our chillers are widely applied in variety industries,please kindly contact me if your cooling industry isone of following:
Chemical & Pharmaceutical
Jacketed Vessel
Laser cutting
Machine tools
And so many more
If your cooling demands is one of our application above,please talk with us for more details.The chillers can control the temperature precisely and improve the cooling efficiency greatly.
Parameter specification
| Model | MG-150WS | ||
| Nominal cooling capacity | kcal/h | 412800 | |
| kw | 480 | ||
| Input power | kw | 93.5 | |
| Chilled fluid flow | M3/h | 80 | |
| Cooling water flow | M3/h | 98 | |
| Power supply | 3PH-380V-50HZ | ||
| Refrigeration oil | Type | HBR-A01 | |
| Charge | L | 18 | |
| Refrigerant | Type | R22/R134a/407c | |
| Charge | Kg | 73 | |
| Type of control | Thermostatic expansion valve | ||
| Compressor | Type | Semi-hermetic screw type | |
| Quantity | 1set | ||
| start-up mode | Y- | ||
| power | Kw | 100 | |
| Capacity control | % | 0,33,66,100 or 0,25,50,100 | |
| Evaporator | type | Shell and tube | |
| Inlet and outlet pipe diameter | inch | PT5" | |
| Condenser | Type | Shell and tube | |
| Inlet and outlet pipe diameter | inch | PT5" | |
Components

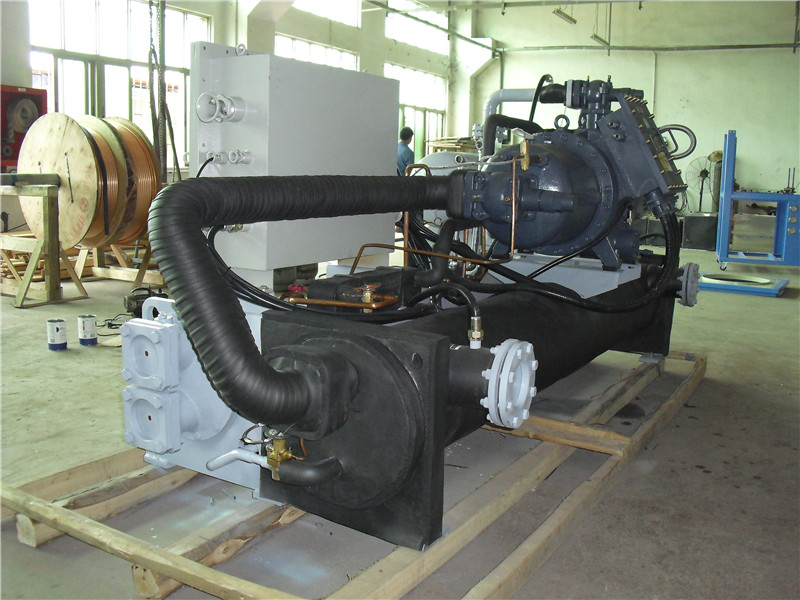

Water chiller photo

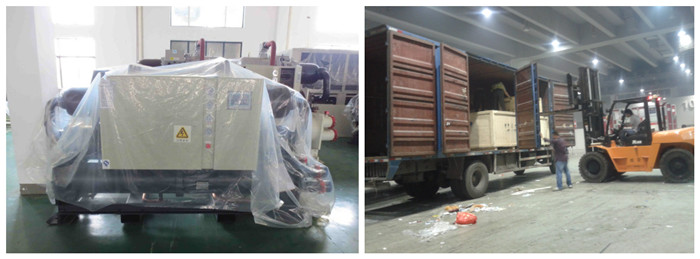

Package
Customer site
If any further questions or inquiry please contact with us:
Ms Grace Zhang
Ph:+8618615626360
Skype:mb.gracezhang
Email:mg.chillers at gmail.com
|
