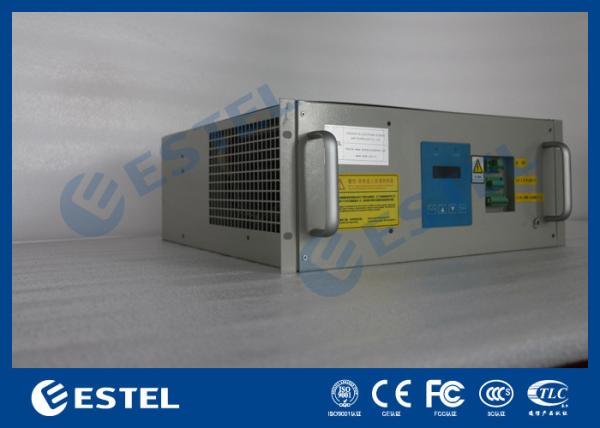

DC48V Outdoor Telecom Enclosure Heat Exchanger 400 Watt Top Mounted HE06-40SEH/T
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | Rated Heat Exchange Capacity: 40W/K |
| Brand Name: ESTEL | Rated Heating Capacity:300W/500W (optional) |
| Model: HE06-40SEH/T | Input Voltage: DC48V |
| Product Name: Outdoor Cabinet Heat Exchanger | Rated Input Current: 1.45A |
| Certification: ISO9001, CE, 3C, FCC, TLC | Rated Input Power: 69W |
| Cover Material: galvanized steel | Working Temperature: -20°C ~ +55°C |
| Protection Level: IP55 | Noise: 55dB |
| Installation Mode: top mounted | Dimension H×W×D: 176×481.6×543.7mm |
| Support OEM | Cooling Method: heat pipe, passive cooling |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 14,000 sets per month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | carton + foam + wooden case |
1. Technical Parameters
| Model | HE06-40SEH/T |
| Performance Parameters | |
| Rated Voltage (V) | DC48V |
| Rated Current (A) | 1.45 |
| Heat Exchange Capacity (W) | 400 |
| Heater Power (W) | 300 |
| Rated Power (W) | 69 |
| Circulation Air Volume (m3/h) | 350 |
| Noise (dB(A)) | 55 |
| Refrigerant | Mixed Liquid |
| Working Temperature | -20°C ~ 55°C |
| Mechanical Parameters | |
| Installation Mode | Top Installed |
| Height (mm) | 176 |
| Width (mm) | 481.6 |
| Depth (mm) | 543.7 |
| Controller Parameters | |
| Working Voltage (V) | DC36~72 |
| Working Temperature and Humidity | -20°C ~ +80°C, <90%RH |
| Temperature Control Accuracy (°C) | 0.1 |
| Power Consumption (W) | 5 |
| Communication Mode | Dry contact,RS485, RS232, GPRS |
2. Description
Heat Pipe Heat Exchanger uses refrigerant phase-change heat transfer principle to conduct passive cooling to cabinet equipment compartment. It makes full use of temperature difference between cabinet internal environment and external environment, effectively introduce the external cold air, fast move heat inside the station to the outer environment, to realize cabinet cooling. The energy efficiency ratio of the heat exchanger is above 8~9, with high efficiency and energy saving.
3. Application
The cabinet heat exchanger is widely used for outdoor telecom cabinet, outdoor battery cabinet, outdoor UPS cabinet, outdoor power cabinet, electric cabinet and industry cabinet,etc.
(1) Independent energy saving control technology greatly reduces working energy consumption;
(2) LCD control board provides easy installation and maintenance;
(3) Perfect monitoring function, effective monitoring and management on heat exchanger operation;
(4) Integrated design, easy for installation and maintenance;
(5) Protection Level: IP55, anti- corrosion, long service life;
(6) Using DC high efficient fans, greatly lower the product noise, environment friendly;
(7) Good energy saving performance, short investment payback period;
(8) Long service life: more than 10 years, easy maintenance and low cost;
(9) With RS485 remote monitoring interface, fault detection and alarm can be transmitted to monitoring center through controller.
Wiring Ports:
0V -48V: power supply input (voltage input: DC36 - 65V)
A+ B- SGND: RS485 communication interface
AL1 AL2: general alarm output
F+ F- : auxiliary direct ventilation control output (output voltage: DC48V)
