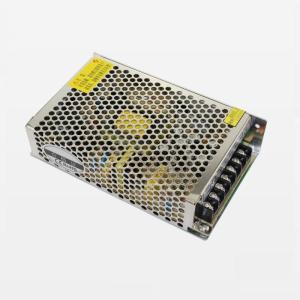

Dual output switching mode power supply +5V/+24V with 85 to 264V AC Input Voltage AD-30B

Specification:

Model number	AD-30A		AD-30B
DC Output Voltage	5V	12V	5V	24V
Output Voltage Error	± 2%	± 3.7%	± 2%	± 3~5%
Rated Output Current	4A	1A	2A	1A
Output Current Range	0.5-4A	0.1-1A	0.5-2A	0.1-1A
Ripple and Noise	50mVp-p	100mVp-p	50mVp-p	100mVp-p
Efficiency	72%		74%
Adjustable Range for DC Voltage	±10% of the rated output voltage
AC Input Voltage Range	85~132VAC/170~264VAC 47~63Hz 240~370VDC
Input Current	0.8A/115V 0.45A/230V
AC Inrush Current	Cold-Start Current 18A/115V 36A/230V
Leakage Current	<0.5mA/240VAC
Overload Protection	105%~150% cut down output, auto recovery
Over Voltage Protection	115%~135%
Start, Rise, Hold time	200ms, 100ms, 20ms
Withstand Voltage	I/P-O/P: 1.5KVAC 1 minute, I/P-FG: 1.5KVAC 1 minute, O/P-PG: 0.5KVAC 1 minute
Working Temperature and Humidity	-10°C~+60°C, 20%~90%RH
Dimension	1117836 mm
Weight	0.4kg
