10 100 1000Base TX To 1000Base FX Media Converter , SM Duplex SC Media Converter

Categories Fiber Media Converter
Brand Name: HILINK
Model Number: HL-MC-10/100/1000BASE-DF
Certification: CE FCC Rohs
Place of Origin: China
MOQ: 1pcs
Payment Terms: L/C, T/T, Western Union,Paypal , AliExpress , Alipay ,etc.
Supply Ability: 3000/pieces/pair /month
Delivery Time: 2-5 working days
Packaging Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
Product Name: 10 / 100 /1000BASE Media Converter
Wavelength: 1310nm
Data Rate: 10 / 100 /1000BASE Auto - negotiated
Connector: SC Connector
Transmission Ditance: 20KM
Fiber Type: Duplex Fiber
Price: Negotiable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

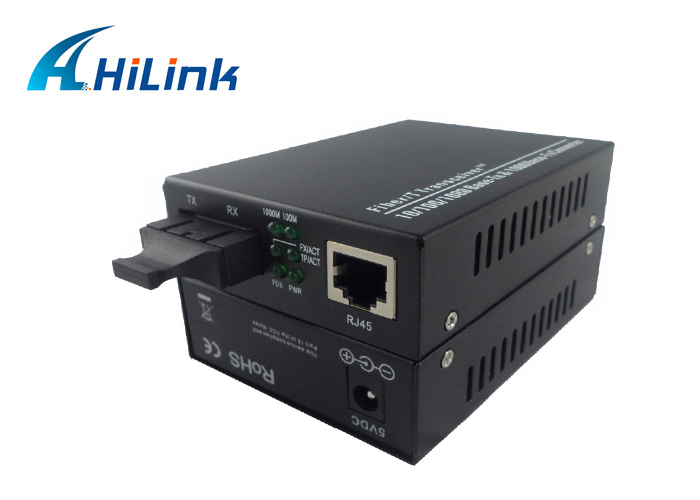

10 100 1000Base TX To 1000Base FX Media Converter , SM Duplex SC Media Converter

10 100 1000Base TX To 1000Base FX Media Converter , SM Duplex SC Media Converter


DESCRIPTION:


10M/100M/1000M Auto-Negotiation TX to FX Fiber Opitc Media Converter with SC Connector for Singlemode Duplex fiber, 1310 nm, 20km range, with external Power Supply, Standalone.


FEATURES
  • Half or full duplex auto-negotiation.
  • 10/100/1000 Mbps auto-negotiation for copper port.
  • Auto MDI/MDI-X on copper port.
  • Plug-and-play installation.
  • Extend network distance up to 100 km.
  • SC/FC/ST fiber port optional
  • External power supply.
  • 6 Easy-to-view LED Indicators
  • Build in 14slot media converter chassis.
APPLICATION
  • Local Area Networks (LAN).
  • Enterprise Networks.
  • Campus Networks.
  • Fiber to the Building (FTTB).
  • Fiber to the Curb (FTTC).
  • Point-to-point fiber networks.

MORE SPECIFICATION :


Distance2km20km
ConnectorSC/STSC
Fiber TypeMulti-modeSingle-mode
Wavelength850/1310nm1310nm
Max TX PWR(dBm)≥-10≥-10
Sensitivity(dBm)≤-24≤-25
Link Budget(dBm)≥11≥25


SHIPMENT & DELIVERY :


1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T / T, Western Union, Paypal and so on.

3. Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
