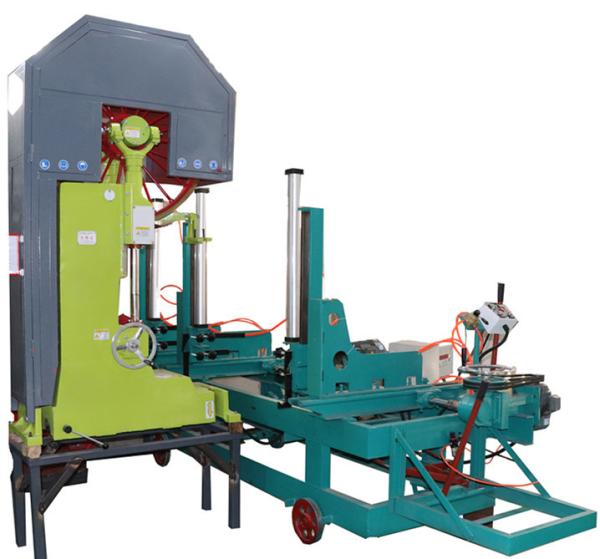

MJ3210 Vertical Woodworking Bandsaw Mill With Electric Log Carriage

Categories	Vertical Band Sawmill
Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	MJ329-ST3000, MJ329-5000, MJ3210-3000, MJ3210-5000
MOQ:	1 SET
Price:	US $5,000 - 50,000 / Set
Packaging Details:	container loading
Delivery Time:	within 15 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1500sets/year
Name:	Vertical band saw machine with trolley
Type:	Band sawmill
Max. cutting log diameter:	800mm
band wheel diameter:	1000mm
blade size:	125x1.05mm
Saw wheel diameter:	1000mm
Cutting log max. length:	6meters or as customer needs
Carriage walking:	Manual or electric or inverter
Main motor:	22kw
Warranty:	12 months

Contact Now

Add to Cart

Company Info.

Weifang Jiuyi Information technology co., LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

MJ3210 Wood Cutting Vertical Band Sawmill with Log Carriage for sale
MJ3210 Vertical band sawmill with electric log carriage

Manual log clamp or pneumatic log clamping
Electrical log feeding
Electrical setting sawn sizes
Cutting log max. diameter 800mm , cutting length 4meters, 6meters or as customer needs

Technical data	MJ3210-DD3000	MJ3210-DD5000
Saw wheel diameter	1000mm	1000mm
Maximum sawing log diameter	800mm	800mm
Maximum sawing log length	4meters	6meters
Main motor	22KW	22KW
Carriage clip stake quantity	3sets	4sets
Saw blade LWT	6850x125x1.05mm	6850x125x1.05mm
Wood grasp mode	Manual	Manual
Carriage walking/advance	Electric	Electric
Setting sawn size	Electric	Electric
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	3000kgs	4000kgs

2.MJ3210 Vertical band sawmill with CNC auto log carriage

Pneumatic log clamping
Automatic log feeding, frequency variable so speed adjustable
Touching screen setting sawn sizes
Cutting log max. diameter 800mm , cutting length 4meters, 6meters or as customer needs
Working video link: https://youtu.be/rX7VEPHzDxE

Technical data	MJ3210-ZD3000	MJ3210-ZD5000
Saw wheel diameter	1000mm	1000mm
Maximum sawing log diameter	800mm	800mm
Maximum sawing log length	4meters	6meters
Main motor	22KW	22KW
Carriage clip stake quantity	3sets	4sets
Saw blade LWT	6850x125x1.05mm	6850x125x1.05mm
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	3000kgs	4000kgs

MJ3212B Vertical Band Saw with CNC Automatic Log Carriage

Technical data	MJ3212B-ZD3000	MJ3212B-ZD5000
Saw wheel diameter	1250mm	1250mm
Maximum sawing log diameter	1500mm	1500mm
Maximum sawing log length	4meters	6meters
Main motor	45KW	45KW
Saw blade LWT	9200x150x1.25mm	9200x150x1.25mm
Carriage clip stake quantity	3sets	4sets
Wood grasp mode	Electric	Electric
Carriage walking/advance	Frequency converter	Frequency converter
Setting sawn size	PLC touching screen	PLC touching screen
Carriage length	3meters	5meters
Rail length	10meters	18meters
Weight	11000kgs	12000kgs
