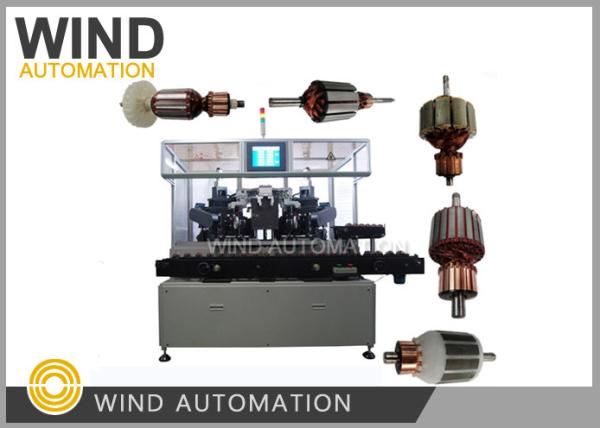

WIND-DAB-5B Fan Motor Winding Machine Automatic Dynamic Armature Balancing Remove Weight Type

Five Working Station Automatic Dynamic Armature Balancing Remove Weight Type WIND-DAB-5B

Quick Details:

1. Amature weight remover machine with R cutter or V cutter remove armature for the high speed motor

to let motor performance well, auto loading and unloading, balancing and cutting.

2. Rejected armature be transfer to specific conveyor automatically.

Parameter:

Armature Weight<1.6KGS

Stack height:15-60mm

Armature Diameter: Ф25-40mm(II)

Armature Diameter:Ф40-60mm(III)

Balancing speed:1000—2200rpm

Power supply: 3Phase,380V,50HZ

Air pressure: 0.4~0.6Mpa

Initial unbalancing value: ≤500mg for armature OD below 32mm of one remove position

≤800mg for armature OD around 40mm of one remove position

Cycle time: 10 to 12seconds

Dimension: 2000*1700*1800 mm
