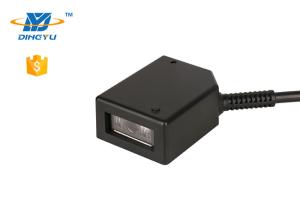

| Categories | Fixed Mount Scanner |
|---|---|
| Brand Name: | Dingyu/ DY SCAN |
| Model Number: | DF3100 |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiate |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Delivery Time: | 3-7 days |
| Interface Type: | USB,RS232 |
| Scan rate: | 300 times / sec |
| Resolution: | 2500 |
| Color bit: | 32bit |
| Weight: | 80g |
| Scan Type: | Linear CCD |
| Depth of field: | 30mm-700mm |
| Company Info. |
| Shenzhen DYscan Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
| Physical Parameter | |
| Weight | ≈80g(USB) |
| Dimension | (L)49.2mm * (W)37.5mm * (H)20.0mm |
| Interface Type | USB ,DB9 |
| Communication Mode | USB(USB-KBW,USB-COM),RS232 |
| Power Supply | DC 5V@80mA(work) |
| Performance | |
| Scan Type | Linear CCD |
| Light Source | Visible red light,625±10nm |
| CPU | 32-bit |
| Resolution | 2500 |
| Resolution | ≥3mil/0.076mm(PCS90%,Code 39) |
| Decoding speed | 300times/s |
| Depth of field | 30mm-700mm |
| Scan Mode | Manual ,Continuous, Auto sense, flashing |
| Scan Angle | Roll±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm) |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
| Environmental | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5 meters |
| Transport vibration Test | 10H@125RPM |
| Depth of field | |
| 3MIL | 80-120mm (PCS90%,Code 39) |
| 13MIL | 30-320mm (PCS90%,EAN-13) |
| 20MIL | 30-450mm (PCS90%,Code 39) |
| 40MIL | 130-700mm (PCS90%,Code 39) |
| Accessories List | |
| Cable(non-removable) | USB Cable, used to connect the DF3100 to a host device. RS232 Cable, used to connect the DF3100 to a host device, with USB power feeder. |
| Power Adaptor | Output: DC5V 1A,Input: AC100~240V 50~60Hz(serial port optional). |
Application
Q: Can i make a trial or sample order before ordering?
A: Yes,sure
Q: How can i print my logo on scanner? how much ?
A: Firstly,pls inform us your logo and printing position
expected,then we will make sample for your confirmation shortly The
cost depends on some factors.
Q: Can we have our logo or company name to be printed on the
product or package?
A: Yes, printer with logo or company name is acceptable, it will be
accomplished by silk printing, please contact us for more details.
Q: How about your warranty?
A: The buyer will enjoy 1 year warranty since buying from us
Q: If the scanner not working ,how can we do ?
A: pls contact and inform related sales representative with the
issues you have
|
