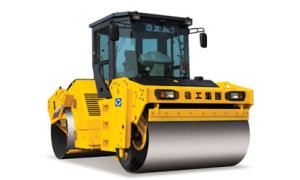

XD123 XCMG 12 tons Double drum double hydraulic drive vibratory road rollers

Categories road roller
Brand Name: XCMG
Model Number: XD123
Certification: ISO,CE
Place of Origin: China
MOQ: 1 unit
Supply Ability: 500 units/month
Delivery Time: 30-35days
Packaging Details: special package for export
Weight: 12 tons
Vibration Frequency: 67/50Hz
Drum Width: 2130mm
Engine Model: DEUTZBF4M1013-15T3R/2-111KW
Drum Diameter: 1300mm
Gradeability: 30%
Travel Speed: 0-12km/h
Static Linear Load: 297/297N/cm
Fuel tank capacity: 154L
Hydraulic oil tank capacity: 65L
Condition: New
Overall Dimensions: 5146×2317×3096mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

XD123 XCMG 12 tons Double drum double hydraulic drive vibratory road rollers

XCMG official XD123 12ton double drum static road roller

Comfortable driving
Spacious and bright cab features wide visibility and comfortability, and the suspensible seat, speaker and safety belt are equipped in the cab.
Unique structure
XCMG unique cylinder structure features strong rigidity and strength, and it adopts the special bearing, high limit speed and strong carrying capacity to avoid the polarization of the vibrating drum.
The lubrication method of the vibration bearing is simple and convenient, and the fault of the lubrication system is low.
Convenient control
Convenient operation
The control panel could be adjusted in 180 degrees, and the operator could easily operate the machine during Forward and Reverse, and each compaction mode has good visibility.
It adopts hydraulic drive and electric-hydraulic control technology, contributing to simple operation.
Automatic watering and vibrating system improves the flatness of the road compaction.
XCMG patented crab mechanism and dual-articulated steering could ensure staggering distance of 200mm between the front and rear drums, which is convenient for the side compaction and turning compaction. When the dual-articulation is activated simultaneously, the min. turning radius could be 6000mm.
Adjustable resin mud-scraper features easy operation.
Leading in industry of compaction and watering function
The vibration frequency is adjustable in certain range, two gears of amplitude adapt to the asphalt compaction of different depth.
The unique separate vibration function. The front and rear drums could vibrate at the same time, and the drum could vibrate separately, improving the compaction efficiency.
Excellent configuration
The key imported parts: imported hydraulic plunger piston and motor feature higher centrifugal force and theoretical gradeability. The watering pump and vibration bearing are all of imported parts. There are multiple configurations for the engine to choose to meet various conditions.
Large capacity plastic water tank, three-stage filtering, and double watering systems and interval 7-gear watering ensure the smooth watering.
Convenient repair
The engine hood could be opened from three sides, and the engine and hydraulic pump and each control valve could be checked easily.



Model
XD123
WeightOperating weight12300kg
Axle load, front6200kg
Axle load, rear6100kg
Compaction CharacteristicsDrum Width2130mm
Drum Diameter1300mm
Vibration frequency67/50Hz
Static linear pressure297/297N/cm
Nominal amplitude (high/low)0.3/0.8mm
Excitation force (high/low amplitude)103/159kN
Driving CharacteristicsSpeed range0-12km/h
Steering angle±38°
Oscillating angle±8°
Theoretical grade ability35%
Min. external turning radius4470mm
Engine CharacteristicsEngine modelDEUTZBF4M1013-15T3R/2
TypeWater cooled, turbo-charged,water cooling
Max. power111kW@2100r/min
Engine oil consumption220g/kW.h
Electrical voltage24V
Service refill capacitiesHydraulic oil tank capacity154L
Fuel tank capacity65L
SeizeOverall Dimensions(LxWxH)5146×2317×3096mm
Ground clearance324mm
Wheel base3717mm
Key parts manufacturerDrive axleXCMG
EngineDEUTZB
Vibration systemAMERICAN DANFOSS
Drive SystemAMERICAN DANFOSS
