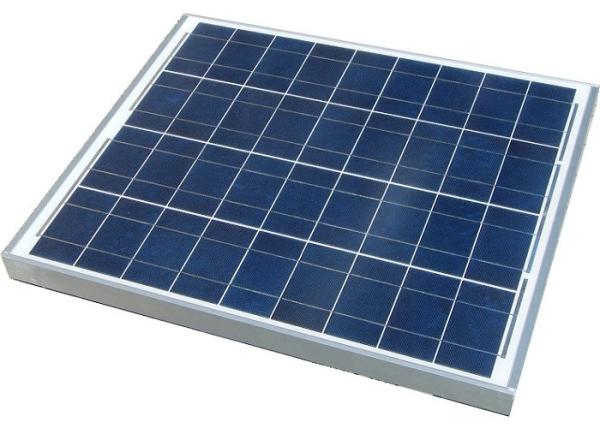

White Frame Solar Power Equipment / High Efficiency Solar Panels High Transmittance

Categories	PV Solar Panels
Brand Name:	OLLIN PV
Model Number:	OL-36p-45
Certification:	CE
Place of Origin:	zhejiang Pr. China
MOQ:	1 piece/unit
Price:	Negotiable
Supply Ability:	2000PCS PER WEEK
Delivery Time:	20DAYS
Packaging Details:	2PC per carton,
Material:	polycrystalline silicon
Color:	blue
dimension:	625x530x25mm
Front Glass:	3.2mm high transmissiontempered glass
Frame:	Anodized Aluninium Alloy
Weight:	8.0kg
Junction box:	Junction box

Contact Now

Add to Cart

Company Info.

Yuyao Ollin Photovoltaic Technology Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1. Use A grade solar cell, high efficiency;

2. High transmittance, low iron tempered glass with enhanced stiffness and impact resistance;

3. Anodized aluminum alloy frame with high mechanical strength for easy installation;

4. Anti-aging EVA and high flame resistant Back Sheet, to provide long-life and enhanced cell performance;

5. Outstanding electrical performance under high temperature and low irradiance conditions;

6.100% apply EL(electroluminescence) technology;

7.5 years limited warranty, 10 years limited warranty for 90% power output, 25 years limited warranty for

80% power output;

Model	OL35P-36	OL40P-36	OL45P-36	OL50P-36
Rated Maximum Power at STC	35W	40W	45W	60W
Maximum Power Voltage (Vmp)	17.4V	17.6V	17.5V	17.8V
Maximum Power Current (Imp)	2.59A	2.86A	3.14A	3.37A
Open Circuit Voltage ( Voc)	21.8V	22.1V	22.1V	22.4V
Short Circuit Current (Isc)	2.84A	3.09A	3.45A	3.68A
Power Tolerance	0~+3%	0~+3%	0~+3%	0~+3%
STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5
Mechanical Parameters
Cell Type	Poly-crystalline 156x156mm (6inch)
No. of Cells	36 (4x9)
Glass	3.2mm, High Transmission, Low Iron, Tempered Glass
Junction Box	IP65&IP67 Rated
Output Cable	Section Size: 2.5mm²
Frame	Anodized Aluminum Alloy
No. of Bypass Diodes	2
Connector	MC4 Compatible
Working Conditions
Maximum System Voltage	DC 1000V(IEC) / 1500V(IEC) / 600V(UL)
Operating Temperature	-40°c~+85°c
Maximum Series Fuse	15A
NOCT	45±2°c
Application Class	Class A
Temperature Coefficient
Temperature Coefficient of Pmax	-0.41%/°c
Temperature Coefficient of Voc	-0.31%/°c
Temperature Coefficient of Isc	+0.06%/°c

FAQ:

Q1:What’s your payment terms?

A1:We accepted almost all payment terms, like T/T, L/C etc.

Q2: OEM Service

A1: Firstly, we could print your logo on the outer panel case. Also, we could offer you a special discount if

your quantity is large (to 500pcs or so).

Q3: Warranty Process

A3:Normally, the inverter could work for at least 25 years and we supply 3 years warranty.

Q4: How long is your delivery time?

A4:Usually, it needs 15 days from material preparation to products completed, but since we have many

samples in stock, we could send out the bulk within 3-5 days if you need urgently.
