| Categories | Fire Safety Door |
|---|---|
| Brand Name: | ZHONGWO |
| Model Number: | ZW-GM02(T) |
| Certification: | BS， WHI， UL, CCC |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | western union, moneygram,cash, l/c, t/t |
| Supply Ability: | 600 Sets per Day |
| Delivery Time: | 35 Days After Payment Received |
| Packaging Details: | Inside Bubble Bags+ Strong Carton+Wooden Frame |
| Material: | Galvanized Steel |
| Fire Rating: | 30 min |
| Surface Treatment: | Powder Coating / Heat Transfer Printing |
| Size: | Customized Size |
| Infilling: | 38 mm Fireproof Perlite Board |
| Thickness of Steel Sheet For Door Frame: | 1.2 mm |
| Thickness of Steel Sheet For Door Leaf: | 0.8 mm |
| Highest Temperature Rise: | 69.3 ℃ |
| Opening Force: | 50 N |
| Opening Degree: | 90-120 Degrees |
| Company Info. |
| Zowor Door Industry Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

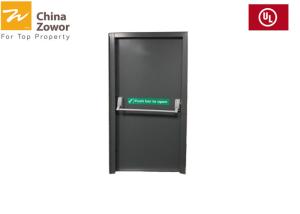

Steel FD30 Fire Door
All of Zhongwo FD30 steel fire doors are class A fire doors and are certified according to BS476-22:1987. We can provide you with relevant testing report and certificates in order to verify the door’s fire integrity and insulation. Generally our FD30 steel fire doors sets are complete doors with both leaf and frame. We can also provide individually the door frame or door leaf.
Product Advantage
| Item | FD30 Steel Fire Door |
| Eco-friendly& Healthy Infilling Material | All of our fireproof perlite board must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006. |
| Top Appearance Quality | Surface adopts technology without welding spots, so that to get smooth appearance. |
| Advanced Surface Treatment | We introduce the process of heat transfer printing instead of traditional painting process to ensure the decorative and environment-friendly performance of rosewood steel fire door. |
| Top Flexibility | All of our steel fire doors can smoothly open and close, definitely without the problem of jam or so. |
| Small Door Leaf Opening Force | Door leaf opening force of our rosewood steel fire door is no more than 50N, which is much smaller than 80N according to BS476-22:1987. |
| Customized Products | Nearly all of our steel fire doors can be customized as your request. |
Main Points of Installation
Firstly the fire doors must be opened outwards, in the direction of corridors and evacuation passages. There are two kinds of installation type for pipe shaft door, that are installation on ground directly and raised one (with low wall and opening hole on the wall). Excluding floor tile and other factors, measure the size of the wall opening and install the doors. According to whether there are other obstacles on the left and right sides of the door, such as fire hydrant box, elevator door, column and other factors to choose the opening direction of the door, that is, opening left and right .
Specification
| Product Name | FD30 Fire Door |
| Fire Rating | 30 min |
| Weight | 20-25Kg/m2 |
| Material of Door Leaf | Galvanized Steel Sheet |
| Material of Door Frame | Galvanized Steel Sheet |
| Thickness of Steel Sheet of Door Leaf | ≧0.8 mm |
| Thickness of Steel Sheet of Door Frame | ≧1.2 mm |
| Thickness of Door Leaf | 40 mm |
| Frame Depth | 90 mm |
| Opening Degree | 90°-130° |
| Open Style | Swing Open, Left Handed, Right Handed |
| Infilling Material | 30min: 38 mm Fireproof Perlite Board(300±30kg/m3) |
| Surface Treatment | Powder Coating; Heat Transfer Printing |
| Color | Heat Transfer Printing:1. Rosewood, 2.Oak Wood,3.Walnut Wood or as Request Powder Coating: Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request |
| Fireproof Seal Strip | FPJ-A-15X 2 |
| Package | Inside Bubble Bags + Strong Carton + Wooden Frame |
| Delivery Time | 35 Days After Payment Received |
| Application | Cable Well, Tube Wells, Exhaust Well, Garbage Wells |
Production Show
Packaging&Delivery
1. Matured packaging team consisting of professional and
well-trained packaging staff with quality packaging materials.
2. Quick delivery within 35 days since transfer confirmed.
3. Reliable and professional logistics services which are all in
long-term cooperation with us.
4. After-sale service: Any questions or problems after receiving
the product, please feel free to contact us. Problems would be
solved for you immediately.
Why Choose Us?
1. All of our fire doors are in top quality and at competitive prices.
2. Free pre-sales consult on any questions about fire doors.
3. Brand Advantage: We insist purchasing to be a reliable fire doors supplier for high-end real estate agents.
4. All fire doors can be customized as your request.
5. Good after-sale service.
|
