| Categories | Capsule Slip Ring |
|---|---|
| Brand Name: | JINPAT |
| Model Number: | LPC-06AT-05 |
| Certification: | ISO9001.ISO14000.CE.UL.FCC.RoHS |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | TT/CC/Paypal |
| Supply Ability: | 500 pieces /Week |
| Delivery Time: | 2 weeks ARO |
| Packaging Details: | Standard/On Request |
| Circuits: | 5 |
| Operating Speed: | 0-300rpm |
| Working Temperature: | -30℃~+80℃ |
| Voltage Rating: | 5 VAC/DC |
| Dielectric Strength: | ≥50V@50Hz between each circuit |
| Product name: | Capsule Slip Ring |
| Humidity: | ≤60%RH |
| Company Info. |
| JINPAT Electronics Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

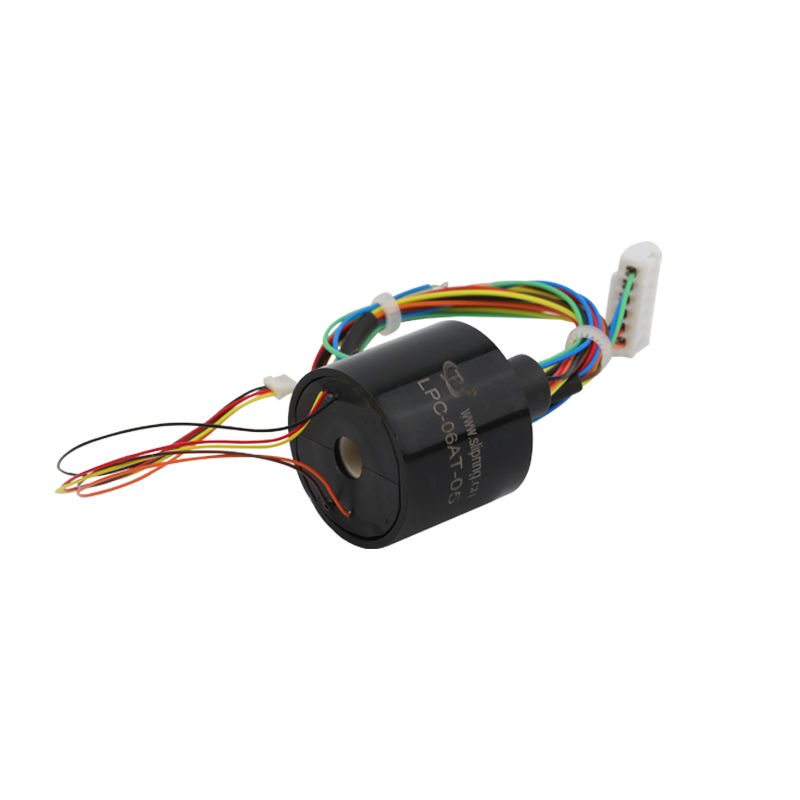

5 Circuits Capsule Slip Ring with 5VAC Voltage and Wide Working
Temperature Range
LPC-06AT-05 can be used in any electromechanical system that requires
unrestrained, intermittent, or continuous rotation while
transferring power or data.
It provides an economical, readily available solution when a
compact through-bore configuration is required. Fiber brushes do not require lubrication and produce virtually no
wear debris, for maintenance-free, lifetime operation.
Specification
| Circuits | 5circuits *1A |
| Working Voltage | 5 VAC/DC |
| Dielectric Strength | Between circuits≥50VAC@50Hz |
| Insulation | 10MΩ@100VDC |
| Electrical Noise | ≤0.01Ω |
| Working Speed | 0~300 rpm |
| Contact | Precious Metal |
| Housing | Engineering Plastic |
| Wire Size | Rotor:φ0.6mm AWG32# Stator:φ0.4mm AWG32# |
| Wire Length | Rotor:327±5mm Stator: 80±5mm |
| Temperature | -30°C~+80°C |
| Humidity | ≤60%RH |
| IP | IP54 |
Product display
