| Categories | Temperature Sensor Thermistor |
|---|---|
| Brand Name: | Hwalon |
| Model Number: | ntc sensor |
| Certification: | CE, SGS, RoHS |
| Place of Origin: | China |
| MOQ: | 1000 |
| Price: | Negotiable |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 600000 |
| Delivery Time: | 7-15 working days |
| Packaging Details: | Carton/ Bulk |
| Diameter: | 2.0±0.3mm |
| Resistance: | 1k-330k ohm |
| Tolerance: | ±1% |
| B Value: | 3100k-4300k |
| foot pitch: | 2.0±0.05mm |
| Company Info. |
| Shenzhen Hwalon Electronic Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

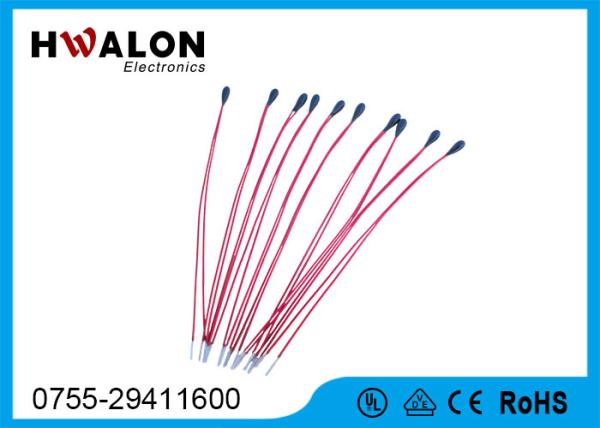

High stability 10k 100k ohm 1% NTC Temperature Sensor Thermistor for Automotive electronics
Quick Details:
1. Excellent thermal cycle endurance
2. Good quality of coherence and interchange
3. -55 ~125 ℃ operating temperature range
4. High stability steady
5. Wide resistance range
6. Has Small size, fast response
unit:mm
| Dmax±0.3 | L1max | L2mix | ∮d±0.05 | F±0.05 |
| 2.0 | 3.2 | 18 | 0.45 | 1.0 |
Parameters:
| Coating | Epoxy Resin |
| Color | Black |
| Lead material | CP wire |
| Thermistor Specification | R25=880 ohm,Beta 20/50=3150K |
| Dissipation Factor | ≥2mW/C |
| Thermal Time Contant | ≤10sec |
| Insulation resistance | ≥100Mohm at 100VDC 1min |
| Operating temperature | -40~+125degree |
| Soldering Temperature | <350degree |
| Storage conditions | -10~+40degree; ≤75% RH |
| Application | ECT Temperature sensor |
Application:
1. Microwave oven,electric brooder
2. Heating Apparatus,Electric Thermometer
3. Disinfecting machine,soybean milk
4. Refrigerator,frozen cabinet and air conditioner
5. Liquid Level Sensor,Automotive electronics
Dimension:
How to Order:
1. Resistance and tolerance
2. B Value and tolerance
3. Diameter
4. Range of usage temperature
Please provide us with these parameters to help you get the exect model.
FAQ:
| Questions | Answers | |
| 1 | What is the MOQ? | 5Kpcs |
| 2 | What is the payment terms? | By negotiation |
| 3 | Can you accept special requirement? | Yes, we can.we can design for your special requirement. |
| 4 | Can you make the printing artworks(such as user manual/packing/rating label) in our language? | Yes we can.we do OEM work for a long time. |
