| Categories | Trav L Cutter |
|---|---|
| Brand Name: | BHY |
| Model Number: | TC0672 |
| Certification: | ISO 9001:2008, CU-TR, ISO14001:2004,OHSAS 18001:2007 |
| Place of Origin: | Suzhou China |
| MOQ: | 1set |
| Price: | Negotiate |
| Supply Ability: | 500 Sets/Year |
| Delivery Time: | 30 days |
| Packaging Details: | Metal Case |
| Name: | Trav L Cutter; Travel Cutter |
| Drive: | Hydraulic |
| Mode: | TC0672 |
| Processing Range: | 6''-72''(153mm-1829mm） |
| Wall thickness: | ≤25mm |
| Hydraulic requirements: | 15 gpm@1500psi (57 L/Min, 106bar) |
| Cutter speed: | Adjustable 0-60RPM |
| Operating Weight: | 100kg |

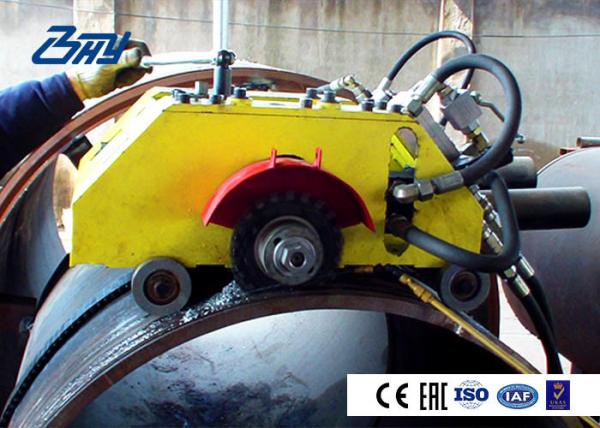

Portable Hydraulic Climbling Pipe Cutting and Beveling Machines CE ISO Proved
Travel Cutter
Trav-L-Cutter, or "Travel Cutter," is a portable pipeline cutting, beveling and milling machine with 6in-72in capacity. This machine features atmospheric anti-corrosion package with stainless steel components and special finishes.
The Model TC0672 utilizes a powerful, sealed closed loop hydraulic drive system, includes anti-corrosion package with stainless steel components and special finishes. It is ideally suited for hostile environments or for use underwater.
Our Climbing pipe cutting and beveling machine is designed for cutting and beveling all common pipe materials. It is widely applied in natural gas, crude oil, long distance transport pipeline, power plant and hostile environments etc.
■ Horizontal and vertical cutting
The Travel Cutter will operate on horizontal or vertical pipe, in
the field or in the shop.
■ Safe, Cold Cutting
Bohyar’s Travel Cutter can be used in explosive conditions, on
natural gas, crude, product and fuel lines.
■ Fast, Reliable
A standard wall pipe can be cut and beveled with a cutting speed of
approximately 2 minutes per 1'' of pipe diameter. Cutting time
varies for heavier walls and harder alloys.
■ Corrosion resistance
Use stainless steel screws, special bearings, seals and zinc layer
including attachment prevents corrosion due to the long-term job in
brine that may arise.
| Name | Travel Cutter, Trav L Cutter,Climbing Pipe Cutting Beveling Machine |
| Model | TC0672 |
| Processing Range | 6''-72''(153mm-1829mm) |
| Drive Mode | Hydraulic |
| Function | Cutting and Beveling, Cold cutting |
| Wall thickness | 5mm-25mm |
| Cutter speed | Adjustable 0-60RPM |
| Hydraulic requirements | 15 gpm @ 1500 psi(57L/Min,106bar) |
| Dimensions | 610x510x280(mm) |
| Transport size | 1040x635x457(mm) |
| NET Weight: | 100kg |
| Shipping weight | 190Kg |
| Feeding method | Reliable anti-slip chain drive |
| Hydraulic power source | Electric drive or diesel engine |
| Machinable material | Carbon steel, alloy steel, stainless steel |
| Application: | Nuclear Power, Thermal Power, Chemical Plant, Natural Gas, Boiler Plant, Pharmaceutical Factory |
| Package: | Metal Packing Case Or Wooden Box |
| Installation method | Vertical or horizontal installation |
| Mounting Method: | OD Mounted |
| HS CODE: | 8461909000 |
Maintenance Information: Before the machine or any of its accessories is returned for maintenance, please call Bohyar Company. We will give suggestions on transportation and handover of the machine or accessories, and estimate the time and cost of corresponding maintenance.
Warranty Information: The climbing cutting and beveling machine (Travel Cutter) produced by Bohyar has a warranty period of one year. In case of any quality problem during the warranty period, we will provide free maintenance and repairment service.
|
