Self Feeding 3 Point Wood Chipper Shredder Direct Drive With 2 Years Warranty

Categories 3 Point Wood Chipper
Brand Name: Fred
Model Number: BX42S
Certification: CE
Place of Origin: Weifang, China
MOQ: 1 Unit
Price: Negotiated
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 500 Units Per Month
Delivery Time: 35 Working Days After Your Payment
Packaging Details: Iron Steel Crate Package 1150x920x1250mm
Chipping Capacity: 4 Inches
Rated RPM: 540 - 1000
Discharge Chute Rotation: 360 Degrees
Number Of Cutting Knive: 4
Flywheel Size: 210lbs.(95kgs)
Working Efficiency: 5 - 6cbm / h
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Self Feeding 3 Point Wood Chipper Shredder Direct Drive With 2 Years Warranty

3 Point Wood Chipper Self Feeding Shredder With 2 Years Warranty, Direct Drive


Quick details:


1. The BX42S 3 point wood chipper with 2 years warranty, the quality is more stable than others


2. This self feeding wood shredder has direct drive system, free PTO with shear bolt


3. OEM and ODM could be offered to you.


Product description:

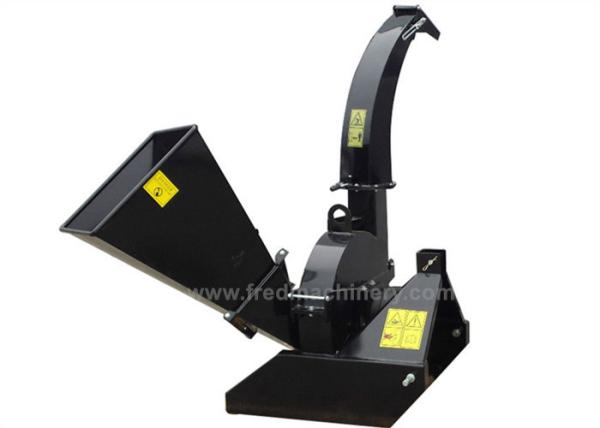

Our BX42S wood shredder is a well constructed, but powerful and robust wood chipper.

The wood chipper is delivered complete with PTO. In the PTO is on one side of a shear pin installed, which serves for safety as a breaking point in blocking or overload. So you can easily use larger tractors with more than 100 hp. You should have at least a motor power of 30 hp. The PTO speed must be 540 - 1000 U / min. be.
The hopper has a top opening of 51 x 51 cm; at the bottom of the opening has a dimension of 10.2 x 25.4 cm. , A maximum diameter of 10 cm are shredded. Softer woods can be shredded with a size of up to 25 cm, if necessary; with such diameters are processed into firewood in the rule and not chopped.
The processing of the BX42S is very solid; the material thickness of the plates used in the bearing portion 10 and be 5 mm, to the hoppers and non-structural parts of 2 mm.
For transport, the hopper can be easily folded up and secured.
The machine is well built, easy to maintain; so you can open with the removal of just one screw the complete flywheel cover and has access to the 4 cutting knives. These cutters have blades on both sides, so they can be easily rotated as needed. The flywheel has a weight of 95 kg and has put on wings, which produce the very strong train by which ultimately the shredded is blown out through the discharge hopper. A strong draughft prevents clogging of the shredder.
The discharge hopper has a height of 152 cm (excl. The raising of the lower arm) and can be rotated 360 degrees. Thus, the shredded leaves easily fill to higher trailer or directly in big bags. The ejection angle can also be changed. The BX42S flings the shredded up to 6 meters!
The shredder is designed for the 3 point hitch and can be used from Kat. I.
