Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body

Categories Powder Mixer Machine
Brand Name: SED Pharma
Model Number: SED-450EH
Certification: CE
Place of Origin: China
MOQ: 1 Set
Price: Negotiable
Payment Terms: T/T,L/C, MoneyGram,Cash
Supply Ability: 30 Sets per Month
Delivery Time: 35 Days after receiving the advanced payment
Packaging Details: Wooden Case
Name: Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body
Item Name: Powder Mixing Machine
Working Volume: 450 KG/Batch
Motor power: 4.5kw
Dimension: 1500×3200 ×2550mm
Weight: 1800kgs
material: stainless steel
key word: Powder Mixer Machine
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body

Two Dimensional Dry Powder Mixer Machine With Stainless Steel Body


The main technical characteristics of Mixer Machine

NumberItemUnitModel/specification
1

Loading capacity

L1500
2Max Loading WeightKg/batch450
3Total motor powerkw4.5
4Overall sizemm

1500×3200×2550

5Weightkg1800

Entire Body Stainless Steel Two Dimensional Dry Powder Mixing Machine


1. For mixing dry powders or small granules in Food,Chemical and Pharmaceutical industry ;
2. Particularly good at mixing materials with quite different bulk density
3. Mixing vessel volume: 100-450KG/Batch;

4. GMP design

5. Vacuum feeder can be equipped to achieve automatic feeding and prevent dust.

Working principle of mixing machine :

EYH series two dimensional motion dry powder mixing machine is a novel material mixer extensively used in phamaceutical, chemical, metallurgical, food, light and agricultical industries This machine can carry out highly even mixing of powders or granules, so that the mixe materials can reach their best effectiveness.


This mixer consists of mixing barrel, swing frame and support frame. The Double cone mixing barrel is mounted on support frame by four rollers which makes the mixing barrel rotate axially.


Meanwhile, the crank arm pushed and pulls the mixing barrel back and forth. So the mixing barrel will rock back and forth. Axial rotation and rock back and forth happens in a solid two dimensional space. Materials will be evenly mixed during rolling and rocking in a very short time.


Technical advantages of mixing machine :
1. Mirror polished of inner and outer shell to meet GMP standard.

2. No blind angle in the V-shells, no accumulation of materials, high speed-bar, efficient and shor mixing time.

3. Mixing uniformity can reach 99%

4. Rotating valve is equipped for discharging

5. Fully integrated motors and controls

6. Can work with vacuum feeding system to create dust-free working condition.

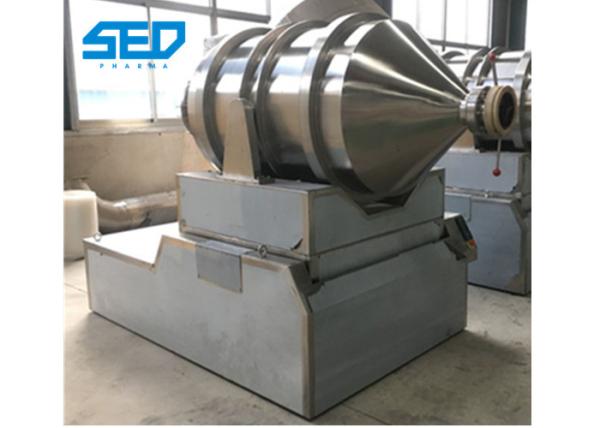

Product Show of mixing machine
two dimensional motion dry powder mixing machine

two dimensional motion dry powder mixing machine


Application of Mixing Machine
