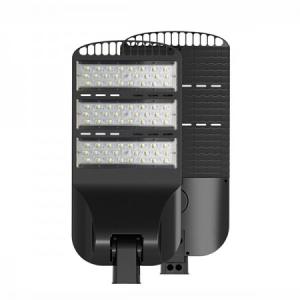

160LM/W IP66 led Street Lights 150W 180W 200W With Meanwell Driver, 150*70 Degree, 5 Years Guarantee street lighting led

Categories LED Street Lighting
Brand Name: LEDYOND
Model Number: LY-ST10150-XX
Certification: CE RoHS TUV CB
Place of Origin: Shenzhen, China
MOQ: 2pcs
Price: 90-100 usd/pcs
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 pcs/month
Delivery Time: 7-10 work days
Packaging Details: Standard export carton 1pcs/carton,WG:8.8kg, Cartion Size:64*40*16cm
Item: Outdoor 150W LED Street Light
LED source: Luxeon 5050 led
Watt: 150W
Luminous: 24000lm
Degree: 150*70 degree
CRI: 70/80/90Ra
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

160LM/W IP66 led Street Lights 150W 180W 200W With Meanwell Driver, 150*70 Degree, 5 Years Guarantee street lighting led


160LM/W IP66 led Street Lights 150W 180W 200W With Meanwell Driver, 150*70 Degree, 5 Years Guarantee street lighting led


150W LED Street Light Dimension:


150W LED Street Light Specifications:

Par NO

Parameter

LY-ST10130XXLY-ST10150XXLY-ST10180XX
Input voltageAC100V~240V 50/60HZ
System consumption(W)130150180
Luminous flux(lm)214502445028260
Chip Brand

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

Current0.62A/220V0.72A/220V0.86A/220V
CRI>75
Color TemperatureWW:2700-3200K / NW:4000-4500K / PW:5000-6500K
Lifespan(hrs)>50000
Luminous efficiency(lm/w)>190
DimmableYES&NOYES&NOYES&NO
IP RatingIP66
Net Weigh(kg)6.96.96.9
Size(mm)642*290*120642*290*120642*290*120
150W LED Street Light Features:

High quality power supply, input voltage 100-277V. The power efficiency is morethan 90%, power factor greater than 0.98, UL compulsory certification.
• Adopting Lepower led light sources and ZAG lens technology, 8% lightefficiency higher than the same type lights in the market, with higher lighttransmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure goodheat dissipation, lower luminous decay, and also extend life span of the leds.Adopting the popular CHEM modular design, effectively reduce the followingmaintenance cost.
• Low energy consumption,matching high efficiency constant-current driver, 60%energy saving; with good resistance to over-current, over-voltage, lightning,high temperature, which fully ensure long life span and high stability of theproducts.
• Durable lights with long life span up to 50000 hours; No need frequentreplacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared radiation, nomercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response;A wide range of working voltage.
• 2pcs 1W chips are packaged in one led, which ensure high stability andalso reduce the death rate of the leds.


Distribution Curve


Operation/Storage

·Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
·Input Voltage 100~305V AC, 50/60Hz
·Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
·Mounting Height : Suitable for 6~12m height


Detailed Images


Project references

Company Information


FAQ

Q1. What is your MOQ?
MOQ: 1 Pcs. Which is No MOQ.

Q2. Can I get a lower price for large quantity order?
Yes, please check with our sales staff for the details.

Q3. What is the payment terms of your formal order?
We accept payment via TT, Paypal, Western Union, and we offer EXW terms.

Q4.Can you guarantee the product quality?
We offer 3-10 years warranty to our products. We ensure and guarantee the production quality of all products, either sample order or formal order, with LEYOND's quality control process, we achieved less than 0.2% general failure rate, this was based on our sales records in the past 10 years.

Q5. Can you provide OEM and ODM service?
Yes, we can provide OEM and ODM product, with customized label design on the product and carton box. Or customized carton box, and laser print logo on the lamp fixture.

Q6. Can you provide the certificate and test reports?
Yes, please contact our sales staff, we can provide all the certificates, test reports, photometric reports and IES files of each of our luminaire.

Q7.How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q8.What is the lead time of your product?
Our standard lead time for sample is 3-5 days, and normal order lead time is 7-10 days. For the large order lead time.
