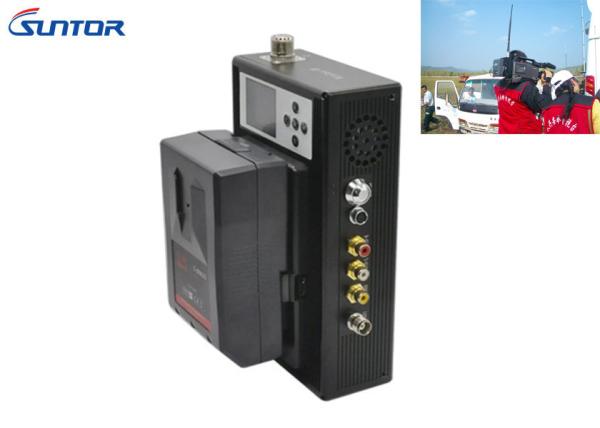

Live TV broadcast V battery mount H.264 Full-HD wireless COFDM av transmitter
Introduction:
This product is a new kind of broadband wireless video equipment
that adopts the latest technologies of COFDM modulation and MPEG-2
video compression that can complete video transmission in
high-speed motion and NLOS (non line-of-sight) conditions. The
diversity receiving technology greatly improves the receiving
quality in all conditions. This transmitter is specially designed
to meet all necessary transmission requirements of broadcasting
standard.
Key Features:
Applications:
At the front-end personnel, scouts, firefighters, rescue personnel
or television interview personnel using small size, backpack or
buckle format transmitter transmit the live signals to the rear
command vehicle Then command vehicle will receive the image
displayed on the monitor via the receiver which convenient for real
time understanding of the site condition and timely command
Modulation | Working frequency | 300MHz～4.4GHz |
| Output power | 1~5W adjustable | |
| Range | 500m-1km(NLOS), 5-10km(LOS) | |
| Modulation | COFDM (64QAM, 16QAM, QPSK) | |
| Channel bandwidth | 2/2.5/4/8MHz | |
| Encryption mode | AES 128Bit/SUNTOR Basic Scrambling | |
| Code stream | 2Mbps～12Mbps | |
| Usage mode | V-mount | |
| Audio and video | Compression format | H.264(Embedded Audio) |
| AV input | High Definition Multimedia Interface, SDI, CVBS(optional) | |
| HD Format | 1080p/23.98, 1080p/24, 1080p/25 1080p/29.97, 1080p/30, 1080P/60 1080i/50, 1080i/59.94, 1080i/60 720p/50, 720p/59.94, 720p/60 720p/25, 720p/29.97, 720p/30 720p/23.98, 720p/24 480P | |
| SD Format | PAL 720 x 576 NTSC 720 x 480 | |
| HD Video Input | SDI or High Definition Multimedia Interface | |
| SD Video Input | BNC | |
| Audio Input Connectors | SDI, High Definition Multimedia Interface or BNC | |
| Others | Antenna Connector | SMA |
| Power supply | 1. Buckle Lithium Battery DC14.4V 2. External Power In: DC 12~16.8V | |
| Power switch | ON/OFF | |
| LCD display | Display and Manually Adjust Parameters | |
| Size | 200×125×50 mm (L×W×H) | |
| Weight | 1.5kg |
|
