Home Wall Mounted Battery Storage Lifepo4 10kwh 20kwh 51.2v ODM

Categories	Residential Energy Storage System
Brand Name:	OEM & ODM
Model Number:	OEM & ODM
Certification:	CE UN38.3 MSDS
Place of Origin:	China
MOQ:	1
Payment Terms:	L/C, T/T
Supply Ability:	10000 per month
Delivery Time:	samples: 8days, bulk order: 30days
Packaging Details:	According to Stardard Export Packing. Carton box, wooden box, wooden pallet
System Voltage:	51.2 V
Output Power Range:	5~10 kWh
System Type:	Wall-mounted
Size::	675400165
Communication Port:	RS485, CAN
Charge Current:	100A
Discharging Current:	100A
Max Discharge Current:	10S 200A
Max Discharge Power:	5000W
Weight:	50kg

Contact Now

Add to Cart

Company Info.

DongGuan BYingPower Technology Co.,Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Home Wall Mounted Battery Storage Lifepo4 10kwh 20kwh 51.2v ODM

Home LiFePO4 Energy Storage: DOD Up to 80% - 10kWh, 20kWh, 51.2V Wall-Mounted Battery

Introducing our home LiFePO4 energy storage system, designed for optimal solar integration:

Depth of Discharge (DOD): Up to 80%, allowing for efficient utilization of stored energy.
Capacity Options: Available in 10kWh and 20kWh to meet your energy storage needs.
Voltage: 51.2V, providing reliable power for various applications.
Wall-Mounted Design: Space-saving installation that fits seamlessly into your home setup.
LiFePO4 Technology: Offers enhanced safety, longer lifespan, and superior thermal stability compared to traditional batteries.
Versatile Applications: Ideal for solar energy storage, backup power, and off-grid systems.
Durable Construction: Built to withstand various conditions, ensuring reliable performance.
This wall-mounted LiFePO4 energy storage solution is the perfect choice for maximizing your solar energy usage at home.

Product Information

Wall mounted batteries are a portable, efficient, and easy to install energy storage solution, particularly suitable for home photovoltaic systems, small and medium-sized commercial energy storage, and other fields. The design of wall mounted batteries aims to provide stable and reliable power supply, while also possessing high safety and long lifespan.

Model	WALL-48100	WALL-48200	WALL-48300
Nominal Capacity	100Ah	200Ah	300Ah
Nominal Energy	5120Wh	10240Wh	15360Wh
Nominal Voltage	51.2V	51.2V	51.2V
Cell	3.2V100Ah	3.2V200Ah	3.2V300Ah
Charge Current	100A	200A	200A
Discharging Current	100A	200A	200A
Max Discharge Current 10S	200A	400A	400A
Max Discharge Power	5000W	10kw	10kw
Operating Temperature	Charge:0~50℃； Discharge:-20~60℃	Charge:0~50℃； Discharge:-20~60℃	Charge:0~50℃； Discharge:-20~60℃
IP Class	IP55	IP55	IP55
Dimensions	L675W400H165 mm	L715W475H255 mm	L745W570H255 mm
Weight	50kg	90kg	146kg

Product Show

Product Details

01.

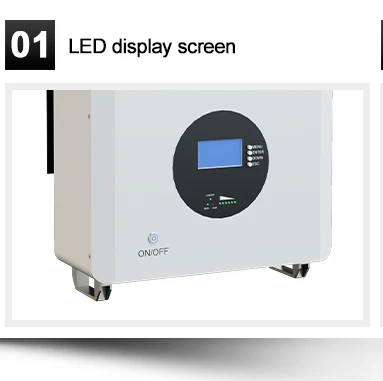

LED display screen

02.

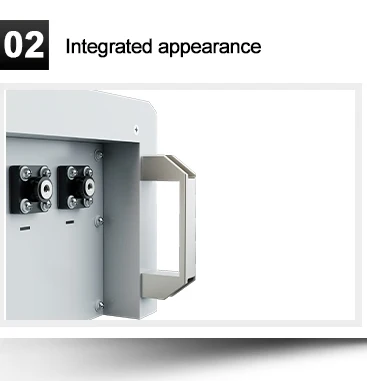

Integrated appearance

03.

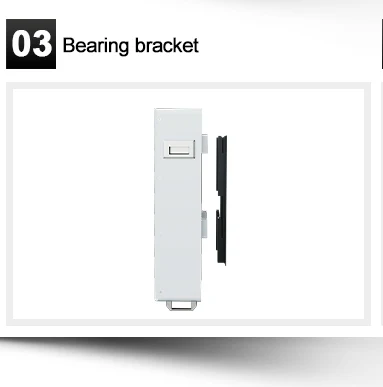

Bearing bracket

04.

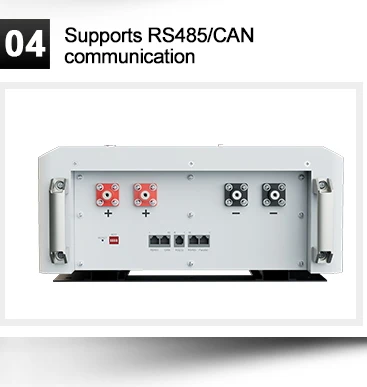

Supports RS485/CAN communication

Product Features

1.80% DOD depth of discharge, battery cycle life> 6000 times.

2.Built-in BMS multiple protection communication function,real-time monitoring data.

3.The system is highly expandable, and the range of voltage and capacity is designed according to customer needs.

4.It has many advantages such as high safety, high stability, high cycle life,high and low temperature performance, high current charging and discharging.

FAQ

Q: Are you manufacturer or trading company?

A:We are a large enterprise that integrates research and development, production, and sales.

Q: How does your factory carry out quality control?

A: We attach great importance to quality control. Every part of our products has its own quality control.

Q: what can you buy from us?

A:Batteries, battery cells, inverters, lead to lithium conversion, solar panels, etc

Q: What is the delivery time for your products?

A: Once we promise the delivery time, we will try our best to do so. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.

Q:What about the after sale service?

A:We provide after-sales service for customers, including replacing new products, replacing circuit boards, etc.
