| Categories | Oil Pump |
|---|---|
| Brand Name: | DENOR |
| Model Number: | DENOR-YB |
| Certification: | ISO/CE/TUV |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | 2000—3000 |
| Payment Terms: | T/T |
| Supply Ability: | 30sets/month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Wooden case packing |
| Name: | Oil Pump |
| Flow Rate: | 1000 L/min |
| Stock: | in Stock |
| Seal: | Lip Type |
| Oem No: | 33002888,3243102,OP1122 |
| Body Material: | Bronze |
| Clip Optionsmooth: | Clip A & Clip B |
| Pump Amp: | Max.10.0(amp) |
| Sample: | Avialable |
| Capacity: | 10G |
| Pressure: | Can generate pressures up to 2bar(30psi) |
| Other Number: | 1510064020 |
| Power: | customization |
| Fuse Amps: | 15amps |
| Engine Code: | 1VD |
| Mounting Hole Quantity: | 6 |
| Company Info. |
| Denor Fluid Equipment (wuhan) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

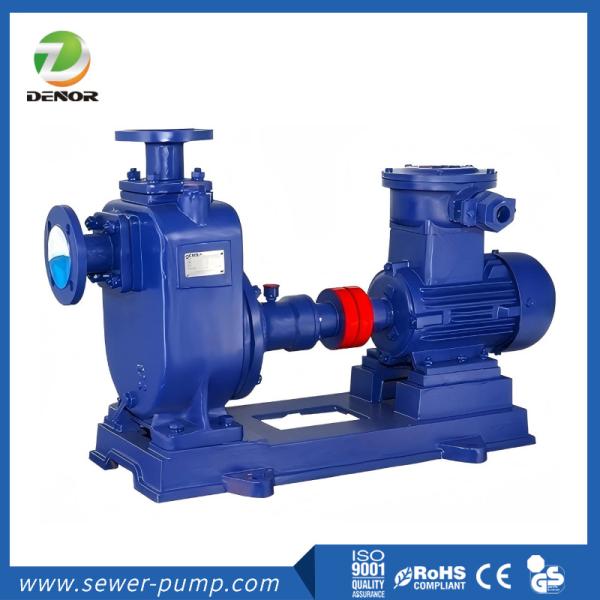

CYZ-A type centrifugal self-priming pump is a pump product developed after digestion, absorption and improvement according to relevant technical data. The pump has simple structure, easy operation, stable operation, easy maintenance, high efficiency, long life, and strong self-priming ability. The self-priming centrifugal pump is made of high quality materials, sealed by cemented carbide mechanical seal, durable, and simplify the pipeline system, improve the working conditions.
● There is no need for the bottom valve in the pipeline, and only need to ensure that there is quantitative oil in the pump body before work.
● When used on oil tankers or water transport ships, it can be used as a sweep pump, and the sweep effect is good.
● The pump is made of high quality materials, sealed by cemented carbide mechanical seal, durable.
● The pump does not need to install a safety valve in the pipeline, and the suction pipeline does not need to install a bottom valve, which simplifies the pipeline system and improves the working conditions.
● It is the ideal choice for the oil industry, land oil depots and tank trucks.
● Suitable for Marine cargo oil pump, bilge pump, fire pump and ballast pump and machine cooling water circulation.
● Transport gasoline, kerosene, diesel, aviation coal and other petroleum products and sea water, water, medium temperature -20℃ ~ 80℃.
| Model | P (kw) | (r/min) | DN (mm) | Flow (m 3 /h) | H (m) | Height (m) |
| 25CYZ-A-20 | 1.1 | 2900 | 25 | 3.2 | 20 | 6 |
| 25CYZ-A-20 | 1.5 | 2900 | 25 | 3.2 | 32 | 6 |
| 32CYZ-A-20 | 3 | 2900 | 32 | 3.2 | 50 | 6 |
| 40CYZ-A-20 | 1.5 | 2900 | 40 | 6.3 | 20 | 5 |
| 40CYZ-A-32 | 2.2 | 2900 | 40 | 6.3 | 32 | 5 |
| 40CYZ-A-40 | 4 | 2900 | 40 | 10 | 40 | 5 |
| 40CYZ-A-50 | 4 | 2900 | 40 | 6.3 | 50 | 5 |
| 50CYZ-A-12 | 1.5 | 2900 | 50 | 12.5 | 12 | 5 |
| 50CYZ-A-20 | 2.2 | 2900 | 50 | 15 | 20 | 5 |
| 50CYZ-A-30 | 3 | 2900 | 50 | 12.5 | 30 | 5 |
| 50CYZ-A-35 | 4 | 2900 | 50 | 12.5 | 35 | 5 |
| 50CYZ-A-40 | 4 | 2900 | 50 | 10 | 40 | 5 |
| 50CYZ-A-50 | 5.5 | 2900 | 50 | 12.5 | 50 | 5 |
| 50CYZ-A-60 | 7.5 | 2900 | 50 | 12.5 | 60 | 5 |
| 50CYZ-A-75 | 11 | 2900 | 50 | 15 | 75 | 5 |
| 65CYZ-A-15 | 3 | 2900 | 65 | 30 | 15 | 4 |
| 65CYZ-A-32 | 5.5 | 2900 | 65 | 25 | 32 | 5 |
| 65CYZ-A-50 | 7.5 | 2900 | 65 | 25 | 50 | 5 |
| 65CYZ-A-70 | 15 | 2900 | 65 | 25 | 70 | 5 |
| 80CYZ-A-13 | 3 | 2900 | 80 | 35 | 13 | 3.5 |
| 80CYZ-A-17 | 4 | 2900 | 80 | 43 | 17 | 3.5 |
| 80CYZ-A-22 | 5.5 | 2900 | 80 | 40 | 22 | 3.5 |
| 80CYZ-A-25 | 7.5 | 2900 | 80 | 50 | 25 | 4 |
| 80CYZ-A-32 | 7.5 | 2900 | 80 | 50 | 32 | 4 |
| 80CYZ-A-40 | 11 | 2900 | 80 | 50 | 40 | 4 |
| 80CYZ-A-55 | 18.5 | 2900 | 80 | 60 | 55 | 4.5 |
| 80CYZ-A-70 | 22 | 2900 | 80 | 60 | 70 | 4.5 |
| 100CYZ-A-20 | 7.5 | 2900 | 100 | 80 | 20 | 3.5 |
| 100CYZ-A-25 | 11 | 2900 | 100 | 100 | 25 | 4.5 |
| 100CYZ-A-32 | 15 | 2900 | 100 | 100 | 32 | 4.5 |
| 100CYZ-A-40 | 18.5 | 2900 | 100 | 100 | 40 | 4.5 |
| 100CYZ-A-50 | 22 | 2900 | 100 | 100 | 50 | 4.5 |
| 100CYZ-A-65 | 30 | 2900 | 100 | 100 | 65 | 4.5 |
| 100CYZ-A-75 | 30 | 2900 | 100 | 100 | 75 | 4.5 |
| 150CYZ-A-20 | 18.5 | 1450 | 150 | 180 | 20 | 4.5 |
| 150CYZ-A-30 | 30 | 1450 | 150 | 170 | 30 | 4.5 |
| 150CYZ-A-45 | 37 | 2900 | 150 | 160 | 45 | 4.5 |
| 150CYZ-A-55 | 45 | 2900 | 150 | 160 | 80 | 4.5 |
| 150CYZ-A-65 | 55 | 2900 | 150 | 170 | 65 | 4.5 |
| 150CYZ-A-80 | 55 | 2900 | 150 | 160 | 80 | 4.5 |
| 200CYZ-A-32 | 90 | 1450 | 200 | 400 | 32 | 4.5 |
| 250CYZ-A-50 | 90 | 1450 | 250 | 400 | 50 | 4.5 |
| 300CYZ-A-50 | 110 | 1450 | 300 | 500 | 50 | 4.5 |
|
