| Brand Name: | RUIJIA |
| Model Number: | RJZL-105 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | USD123 ~438/piece |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 Piece/Pieces per Month |
| Delivery Time: | Within 2Weeks |
| Packaging Details: | Standard export packaging |
| Mounting Type: | Screw hole fixed installation |
| Theory: | Resistance Sensor |
| Output: | Analog SENSOR |

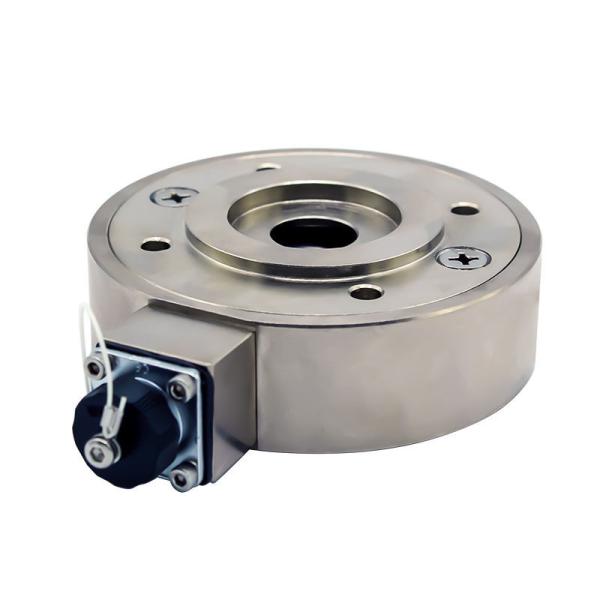

| Description: | Load cell |
| Application: | Measuring weight |
| Measuring range: | 0-100KN |
| Material: | stainless steel |
| sensor type: | Strain type |
| Work force: | Pressure gravity |
| Precision: | 0.03% |
| Type of installation: | Fixed installation |
| voltage: | 15v |
| Specification: | 0-10KN,0-20KN,0-30KN,0-50KN,0-100KN |
| Company Info. |
| Xian Ruijia Measurement Instruments Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
123
1. Made of alloy steel or stainless steel
2. Suitable for belt weigher, hopper scale and other weighing devices
3. Good steel performance and high accuracy
| Specification | |
| Range (T): 0.5-100 | |
| Comprehensive error (%F.S): ±0.05 | Insulation resistance (MΩ): ≥5000 |
| Rated output (mV/ V): 2.0 | Temp. effect on span (%F.S/10℃): ±0.05 |
| Creep (%F.S/30min): ±0.05 | Temp. effect on zero (%F.S/10℃): ±0.05 |
| Zero balance (%F.S): ±1.0 | Operation temp. range (℃): -20~+65 |
| Input resistance (Ω): 380±10 or 750±15 | Excitation voltage (V): 10 (DC) |
| Output resistance (Ω): 350±3 or 700±5 | Safe overload (%F.S): 150 |
| Wiring information: | Red: Input (+) White: Output (-) Black: Input (-) Green: Output (+) |











Q1:How do you control the quality?
A:We have QC team comply with TQM,each step is in compliance to the standards.At the same time,they will take photos and shoot video for you.
Q2: Can you print our brand on the product?
A: Yes, Of course. It can make customer's brand logo.
Q3: What is the payment terms?
A: T/T,L/C,etc.
Q4: How long is your warranty period?
A: Our warranty period is 12 months.
|
