High-Standard Drum Twister Machine For Stranding And Wrapping Of Large Cross-Section Power Cables

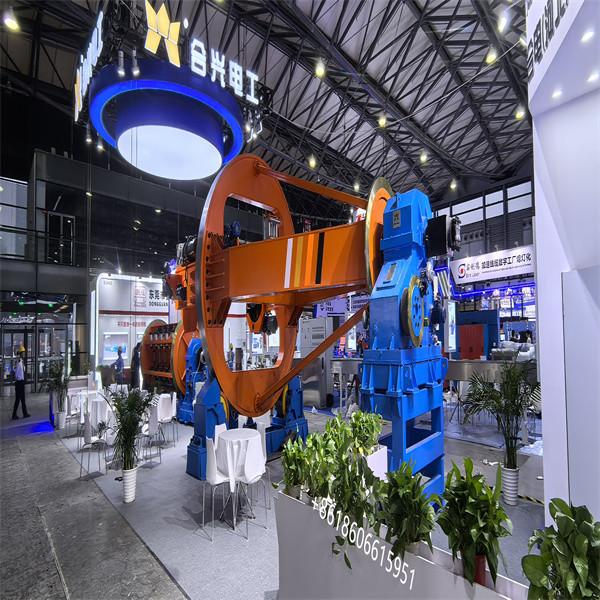

High-Standard Drum Twister Machine for Stranding and Wrapping of Large Cross-Section Power Cables

1. Application:

This machine is mainly used for the stranding of large cross-section and long power cables and split conductors, as well as the wrapping of non-metallic tape.

2. Main parameter:

Electrical control system

4.13.1 The main control cabinet is operated by touch screen PLC to coordinate and control the various parameter settings of each unit during the cable forming process, and can display the operating speed and parameters of each unit in real time, facilitating timely modification and adjustment of the operating parameters of each unit.

4.13.2. The power supply is a three wire five phase system 380V (± 10%) 50HZ

4.13.3. Working principle of electrical appliances: All driving motors are equipped with encoders, and the encoder feedback runs in the control system. The entire machine is controlled by PLC: the frequency converter, braking unit, air compressor, etc. complete the start-up, jog, normal parking and other operations, ensuring stable synchronization performance.

4.13.4. Safety protection: This machine has multiple safety protections, which can take corresponding protective measures in case of faults or situations that do not meet the normal operation of the equipment, and timely display the fault point on the screen of the main control cabinet, so that operators can make timely and accurate judgments and effective treatment plans.

• Protection of the main transmission system, motors, and fans
• Horizontal limit protection for each wire collection and release rack
• Traverse overtravel protection
• Meter counting stop protection
• Air pressure undervoltage protection
• Complete wire machine shutdown protection
• Tape breakage and completion protection
• Opening the protective cover around the package for protection
• Hydraulic lifting platform limit protection

4. Air source requirements

5.1. Air pressure: 0.6MPa

5.2. Air volume: 1.0m ³/ Min

1. Compressed air should be dry, free of impurities and dust

7. Mechanical and electrical accessories

8. Document with machine

9. Operating direction: Right hand, i.e. facing the equipment, pay-off on the left and take-up on the right.
