Sign In | Join Free | My udpf.com |
|
Categories | Optical Transceiver Module |
---|---|
Brand Name: | Hilink |
Model Number: | HL-GLC-T |
Certification: | CE Rohs |
Place of Origin: | Guangdong, China |
MOQ: | 1 pieces |
Price: | Send Inquiry know latest price |
Payment Terms: | T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance |
Supply Ability: | 2000 Pieces/Week |
Delivery Time: | 5-8 working day |
Packaging Details: | Plastic box+Carton |

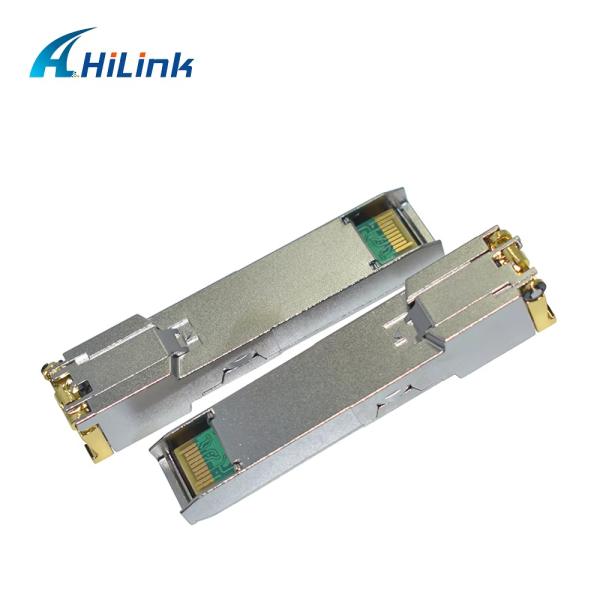

Product Name: | 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver |
Data Rate: | 1000BASE-T and 10/100/1000BASE-T |
Reach: | 100m |
Fiber Connector: | RJ45 Copper |
Operating Temperature: | 0 to 70℃ |
Company Info. |
Shenzhen HiLink Technology Co.,Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Description:
HL-SFP-Tx Copper Small Form Pluggable (SFP)transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supp- orting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.
Features:
>¨ >Up to 1.25Gb/s bi-directional data links
>¨ >Hot-pluggable SFP footprint
>¨ >TX Disable and RX Los/without Los function
>¨ >Fully metallic enclosure for low EMI
>¨ >+3.3V single power supply
>¨ >Low power dissipation (1.05 W typical)
>¨ >Compact RJ-45 connector assembly
>¨ >Access to physical layer IC via 2-wire serial bus
>¨ >1000 BASE-T operation in host systems with SERDES interface
>¨ >10/100/1000Mbps compliant in host systems with SGMII interface
Operating case temperature range of
Standard : 0 to +70°C
Industrial : -40 to +85°C
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
![]() |
