| Brand Name: | IFM |
| Model Number: | PG2794 |
| Certification: | 3C |
| Place of Origin: | GERMANY |
| MOQ: | 1 |
| Payment Terms: | 912$/piece |
| Supply Ability: | 1piece in stock |
| Delivery Time: | 3 day |
| Packaging Details: | 160*110*60mm |
| System: | gold-plated contacts |
| No dead space: | yes |
| Weight[g]: | 520.1 |
| Dimensions[mm]: | 153 x 100 x 57 |
| Company Info. |
| Xiamen ZhiCheng Automation Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
| Application | ||||||||||||
| Application | hygienic systems | |||||||||||
| Media | viscous media and liquids with suspended particles; liquids and gases | |||||||||||
| Medium temperature [°C] | -25...125; (145 max. 1h) | |||||||||||
| Pressure rating | 50 bar | 725 psi | ||||||||||
| Min. bursting pressure | 150 bar | 2175 psi | ||||||||||
| Type of pressure | relative pressure | |||||||||||
| No dead space | yes | |||||||||||
| Electrical data | ||||||||||||
| Operating voltage [V] | 18...32 DC | |||||||||||
| Current consumption | [mA] | < 70; (24 V) | ||||||||||
| Min. insulation resistance [MΩ] | 100; (500 V DC) | |||||||||||
| Protection class | III | |||||||||||
| Reverse polarity protection | yes | |||||||||||
| Power-on delay time [s] | 6 | |||||||||||
| Integrated watchdog | yes | |||||||||||
| ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PG2794-00 — 11.07.2016 | ||||||||||||
| PG2794 | ||||||||||||

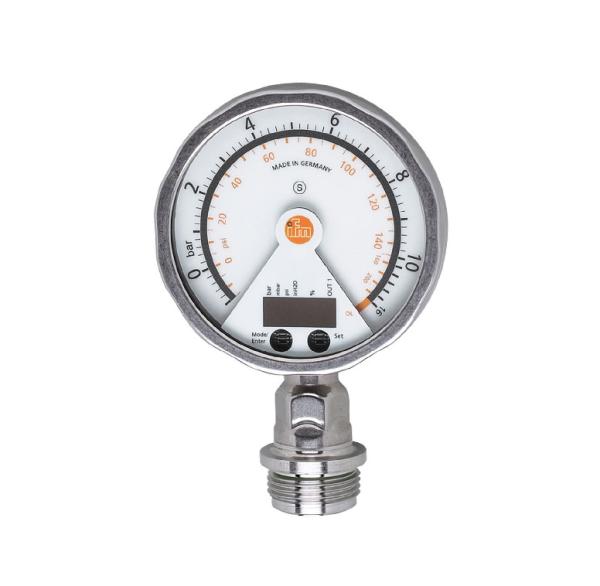

| Flush pressure sensor with analogue display | ||||||||||||
| PG-010-REA01-MFRKG/US/ /P | ||||||||||||
| Inputs / outputs | ||||||||||||
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 | |||||||||||
| Outputs | ||||||||||||
| Total number of outputs | 2 | |||||||||||
| Output signal | switching signal; analogue signal; (configurable) | |||||||||||
| Electrical design | PNP/NPN | |||||||||||
| Number of digital outputs | 1 | |||||||||||
| Output function | normally open / normally closed; (parameterisable) | |||||||||||
| Max. voltage drop switching output DC | [V] | 2 | ||||||||||
| Permanent current rating of switching output DC | [mA] | 250 | ||||||||||
| Switching frequency DC | [Hz] | 50 | ||||||||||
| Number of analogue outputs | 1 | |||||||||||
| Analogue current output | [mA] | 4...20, invertible; (scalable) | ||||||||||
| Max. load | [Ω] | (Ub - 10 V) / 20 mA | ||||||||||
| Short-circuit protection | yes | |||||||||||
| Type of short-circuit protection | pulsed | |||||||||||
| Overload protection | yes | |||||||||||
| Measuring/setting range | ||||||||||||
| Measuring range | -1...10 bar | -14.5...145 psi | ||||||||||
| Set point SP | -0.98...16 bar | -14.2...232 psi | ||||||||||
| Reset point rP | -1...15.98 bar | -14.5...231.8 psi | ||||||||||
| Analogue start point | -1...13.5 bar | -14.5...195.7 psi | ||||||||||
| Analogue endpoint [bar] | 1.5...16 | |||||||||||
| Insteps of | 0.01 bar | 0.1 psi | ||||||||||
| Accuracy / deviations | ||||||||||||
| Switch point accuracy [% of the span] | < ± 0,2; (Turn down 1:1) | |||||||||||
| Repeatability | [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) | ||||||||||
| Characteristics deviation [% of the span] | < ± 0,2; (Turn down 1:1 linearity, incl. hysteresis and repeatability limit value setting to DIN 16086) | |||||||||||
| Linearity deviation | [% of the span] | < ± 0,15; (Turn down 1:1) | ||||||||||
| Hysteresis deviation [% of the span] | < ± 0,15; (Turn down 1:1) | |||||||||||
| Long-term stability | < ± 0,1; (Turn down 1:1; per year) | |||||||||||
| [% of the span] | ||||||||||||
| Temperature coefficient zero point [% of the span / 10 K] | < ± 0,05; (0...70 °C) | |||||||||||
| Temperature coefficient span [% of the span / 10 K] | < ± 0,15; (0...70 °C) | |||||||||||
| ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PG2794-00 — 11.07.2016 | ||||||||||||
| PG2794 | ||||||||||||
| Flush pressure sensor with analogue display | ||||||||||||
| PG-010-REA01-MFRKG/US/ /P | ||||||||||||
| Response times | ||||||||||||
| Response time | [ms] | < 10 | ||||||||||
| Damping for the switching output dAP | [s] | 0.01...30 | ||||||||||
| Damping for the analogue output dAA | [s] | 0.01...30 | ||||||||||
| Step response time analogue output | [ms] | 25 | ||||||||||
| Operating conditions | ||||||||||||
| Ambient temperature [°C] | -25...80 | |||||||||||
| Storage temperature Protection | [°C] | -40...100 IP 67; IP 69K | ||||||||||
| Tests / approvals | ||||||||||||
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD | |||||||||||
| EN 61000-4-3 HF radiated | 10 V/m | |||||||||||
| EMC | EN 61000-4-4 Burst | 2 kV | ||||||||||
| EN 61000-4-5 Surge | 0,5/1 kV | |||||||||||
| EN 61000-4-6 HF conducted | 10 V | |||||||||||
| Shock resistance | DIN IEC 68-2-27 | 50 g (11 ms) | ||||||||||
| Vibration resistance | DIN IEC 68-2-6 | 20 g (10...2000 Hz) | ||||||||||
| MTTF [years] | 100 | |||||||||||
| Mechanical data | ||||||||||||
| Weight | [g] | 553 | ||||||||||
| Materials | stainless steel (1.4404 / 316L); PA; FKM; PTFE; viewing glass: laminated safety glass 4 mm | |||||||||||
| Materials (wetted parts) | ceramics (99.9 % Al2O3); PTFE; stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4 | |||||||||||
| Min. pressure cycles | 100 million | |||||||||||
| Process connection | threaded connection G 1 external thread Aseptoflex Vario | |||||||||||
| Displays / operating elements | ||||||||||||
| Display | Display unit | 2 x LED, green | ||||||||||
| switching status | LED, yellow | |||||||||||
| switch points | LED ring | |||||||||||
| function display | alphanumeric display, 4-digit | |||||||||||
| measured values | analogue display, 0...350° rotatable, pointer not visible when unit disconnected | |||||||||||
| measured values | alphanumeric display, 4-digit | |||||||||||
| With scale | yes | |||||||||||
| Extended display range (max.) | 16 bar | 232 psi | ||||||||||
| Remarks | ||||||||||||
| Remarks | characteristics deviation in the extended display range: 1.5 % of the span | |||||||||||
| switch point accuracy in the extended display range: 1.5 % of the span | ||||||||||||
| Pack quantity | 1 pcs. | |||||||||||
| Electrical connection | ||||||||||||
| Connector: 1 x M12; Contacts: gold-plated | ||||||||||||
|
