| Categories | Wire Rope Mesh |
|---|---|
| Model Number: | HH-SSRM |
| Certification: | ISO9001-2015 |
| Place of Origin: | China |
| MOQ: | 10 square meters |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 5000 rolls per 25 days |
| Delivery Time: | within 8 work days |
| Packaging Details: | wooden case or carton |

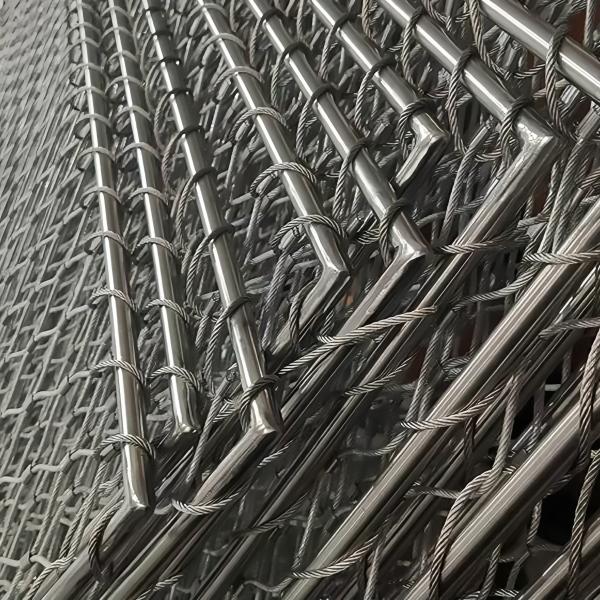

| Name: | Animal Enclosure Steel Mesh |
| Cable structure: | 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm) |
| Mesh Orientation: | Horizontal , Vertical |
| Diamond size: | 20mm-200mm |
| Mesh type: | Knotted cable mesh and Ferrule cable mesh |
| Customized: | deep procession |
| Company Info. |
| Anping County Huihao Wire Mesh Manufacture Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
| Hole pattern | 90 degree diamond hole | 60 degree diamond hole |
| Material | SS304, 316, 316L, etc | |
| Cable diameter | 1 ~ 4 mm | |
| Cable structure | 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm) | |
| Diamond size | 20 ~ 200 mm | |
| Mesh Orientation | Horizontal , Vertical | |
| Feature | Quality material, High flexibility, Anti-corrosion,Longevity, Cost effectiveness, Easy | |
| Mesh Aperture Width × Height (mm) | Wire Rope Diameter (mm) | Minimum Breaking Load (kN) |
|---|---|---|
| 25x40 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 30x50 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 35x60 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 2.0 | 2.5 | |
| 40x70 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 2.0 | 2.5 | |
| 50x88 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 2.0 | 2.5 | |
| 3.0 | 5.7 | |
| 4.0 | 10.1 | |
| 60x105; 70x120 80x140; 100x175 120x210; 160x275 180x310; 200x345 | 1.0 | 0.6 |
| 1.6 | 1.5 | |
| 2.0 | 2.5 | |
| 3.0 | 5.7 | |
| 4.0 | 10.1 | |
| 5.0 | 15.9 |
| Mesh Aperture Width × Height (mm) | Wire Rope Diameter (mm) | Minimum Breaking Load (kN) |
|---|---|---|
| 25x25 | 1.2 | 0.8 |
| 1.6 | 1.5 | |
| 30x30 | 1.2 | 0.8 |
| 1.6 | 1.5 | |
| 40x40 | 1.2 | 0.8 |
| 1.6 | 1.5 | |
| 2 | 2.5 | |
| 50x50 | 1.2 | 0.8 |
| 1.6 | 1.5 | |
| 2 | 2.5 | |
| 60x60 | 1.2 | 0.8 |
| 1.6 | 1.5 | |
| 2 | 2.5 | |
| 2.4 | 3.4 | |
| 3 | 5.7 | |
| 75x75; 90x90 100x100;120x120 | 1.2 | 0.8 |
| 1.6 | 1.5 | |
| 2 | 2.5 | |
| 2.4 | 3.4 | |
| 3 | 5.7 | |
| 4 | 10.1 |
| Mesh Aperture Width × Height (mm) | Wire Rope Diameter (mm) | Minimum Breaking Load (kN) |
|---|---|---|
| 150x260 | 3.2 | 7.38 |
| 120x208 | 3.2 | 7.38 |
| 100x173 | 3.2 | 7.38 |
| 90x156 | 3.2 | 7.38 |
Light weight and high flexibility.
High strength, resistant to fatigue and impact.
Good softness.
Excellent rust-resistance, recyclable and durable.
Outstanding perspectivity and grand appearance.
Maintenance-free and environmentally friendly.
|
