Categories | Inert Gas Fire Suppression System |
---|---|
Brand Name: | Air Giant |
Model Number: | DYMP80/20, DYMP140/20, DYMP80/30, DYMP140/30 |
Certification: | CAL,CMA,CNAS,ILAC-MRA,CCC |
Place of Origin: | China |
MOQ: | 1 set |
Price: | negotiation |
Payment Terms: | L/C, D/P, T/T, Western Union, Paypal, Credit card |
Supply Ability: | 300 sets per month |
Delivery Time: | 10-15 working days |
Packaging Details: | Plywood outer box with bubble bag or paper |
Pattern of extinguishing: | Enclosed Flooding |
System start mode: | Electrical Automatic, Electrical Manual, Mechanical Emergency Start |
Alarm System: | Audible And Visual |
Operating Pressure: | 150-300 Bar |
Color: | Red |
Detection System: | Heat, Smoke, Flame |
Working pressure: | 20Mpa;30Mpa |
Storage Temperature: | -10-50°C |
Company Info. |
Guangdong Air Giant Fire Equipment Co.,Ltd. |
Verified Supplier |
View Contact Details |
Product List |

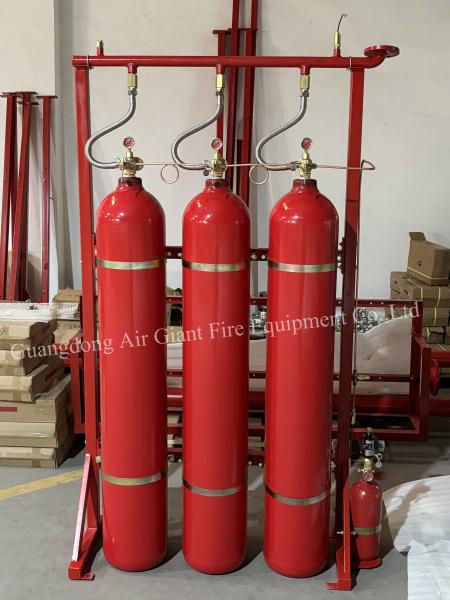

IG55 Clean Agent Fire Extinguishing System
Description:
IG-55 is a gas composed of an equal combination of two elements:
50% argon and 50% nitrogen. These elements occur naturally in the
environment, making IG-55 environmentally friendly as it has no
impact on global warming and does not harm the ozone layer.
IG-55 has a density similar to that of air, and both argon and
nitrogen are clean, colorless, and odorless gases that are
non-corrosive. This makes IG-55 highly adaptable to various
actuation systems, as it can be safely used with materials such as
nickel, steel, stainless steel, copper, bronze, tin, and others at
normal temperatures.
Storage for IG-55 is similar to that of compressed gas, where it is
contained in high-pressure cylinders. The space required for
storage will depend on the pressure and capacity of the cylinders.
Our IG-55 system is designed to operate at a pressure of 30MPa,
enabling us to achieve efficient use of storage space.
Storage cylinder group, storage cylinder group frame, nitrogen driving device, nitrogen driving device frame, the cylinder valve, liquid flow check valve, air flow check valve, electromagnetic starter, gas conveying pipeline, collecting pipe, choice valve, three links, reducer tee, reducing elbow, flange, safety valve, pressure transmitter, pipe, nozzle, chemicals, fire detector, fire controller, sound and light alarm, alarm bell, gas light, emergency start / stop button, etc.
- Telecommunications and data processing
- Switch gear rooms
- Military applications and cell sites
- High-tech medical application
- Computer rooms
- Telecommunication centers
- Records and data archives
- Testing/imaging equipment
- Reference material
- Chemical laboratories
![]() |
