| Categories | AC DC Hipot Tester |
|---|---|
| Certification: | CE, ISO |
| Brand Name: | XZH Test |
| Model Number: | XHZG series |
| Place of Origin: | China |
| MOQ: | 1unit |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
| Delivery Time: | 5-8work days |
| Packaging Details: | wooden box |
| Model NO.: | XHZG series |
| Power: | Electricity |
| Customized: | Customized |
| Color: | Black |
| Output Voltage (Kv): | Customized |
| Output Current (Ma): | Customized |
| Output Power (W): | Output Voltage*Output Current |
| Charging Current (Ma): | Output Current (Ma) |
| Transport Package: | Wooden Box with Foam Inside |
| Trademark: | XZH TEST |
| Origin: | China Xi′ an |
| Customization: | Available |
| After-sales Service: | Warranty |
| Warranty: | 1 Year |
| Company Info. |
| Xi'an Xu&Hui Electromechanical Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

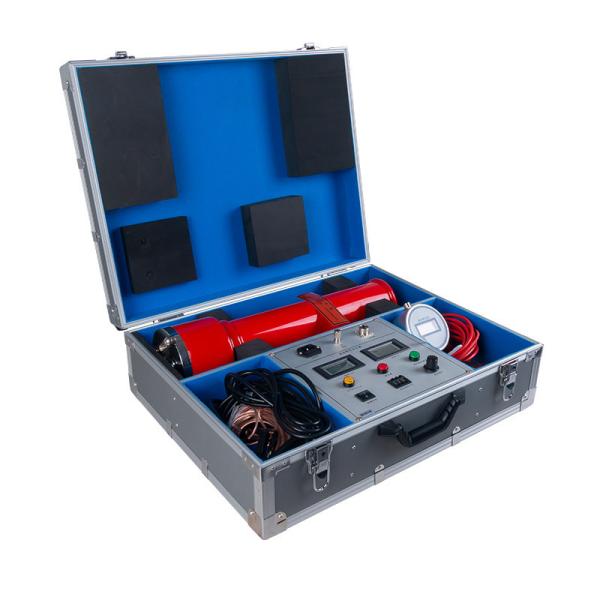

XHZG series
| Specification Technical Parameters | 60/2 | 60/3 | 80/10 | 120/2 | 120/3 | ||
| The output voltage (kV) | 60 | 60 | 80 | 120 | 120 | ||
| Output current (mA) | 2 | 3 | 10 | 2 | 3 | ||
| Output Power (W) | 120 | 180 | 800 | 240 | 360 | ||
| recharging current (mA) | 2 | 3 | 10 | 2 | 3 | ||
| Control box weight(kg) | 2 | 2 | 2 | 2 | 2 | ||
| Weight of spare cylinder(kg) | 2.5 | 2.5 | 4 | 4 | 4 | ||
| Specifications of spare cylinder(mm) | Ф90 340 | Ф90 340 | Ф90 470 | Ф90 470 | Ф90 470 | ||
| Voltage measurement error | 1% (full scale) ±1 character | ||||||
| Current measurement error | 1% (full scale) ±1 character | ||||||
| Overvoltage setting error | Overvoltage protection is set by dial, which is clear at a glance (accuracy ≤ 1.0%) | ||||||
| 0.75Switching error | High-precision 0.75UDC-1mA single-touch button (accuracy ≤1.0%) Best suited for zinc oxide arrester testing | ||||||
| Ripple Factor | ≤0.5% | ||||||
| Way of working | Intermittent use: rated load 30 minutes 1.1 times rated voltage use: 10 minutes | ||||||
| working environment | Temperature: -10°C~+40°C | ||||||
| Relative humidity: not more than 85% at room temperature of 25ºC (no condensation) | |||||||
| Altitude: below 1500 meters | |||||||
| With capacitive load | No limit on the capacitance of the test product | ||||||
| Structural features | Electrical insulation voltage doubler | ||||||
| Air insulation, no leakage concerns | |||||||
If you want to customize other voltage levels, please contact me
and I will help you solve any problems you encounter
Technical Parameters
Features
1. The chassis adopts international universal chassis, which can be
used vertically or horizontally.
2. It adopts medium frequency voltage doubler circuit, applies PWM
pulse width modulation technology and high-power IGBT devices.
3. It adopts large voltage feedback, with high output voltage
stability and small ripple coefficient ≤1%.
4. Full range smooth voltage regulation, good voltage regulation
fineness, regulation accuracy ≤0.5%, stability ≤1%, voltage and
current error 1%±1 word.
5. Boost potentiometer starts from zero to boost.
6. 0.75UDC1mA function button, convenient for zinc oxide lightning
arrester test, accuracy ≤1%.
7. Overvoltage protection adopts code setting, which is clear at a
glance, and the error is ±1%.
|
