| Categories | Door Frame Machine |
|---|---|
| Brand Name: | Shuping |
| Model Number: | DK |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/40 work days |
| Delivery Time: | 35-40 work days |
| Packaging Details: | Bubble wrap packaging 4.4m*3m*2.2m |
| Production Capacity: | 100-150pcs/h |
| Power Source: | Electric |
| Material: | Steel |
| Power: | 3KW |
| Frequency: | 50Hz |
| Control System: | PLC |
| Dimension: | 3000mm*1500mm*2000mm |
| Operating Mode: | Automatic |
| Warranty: | 1 year |
| Weight: | 1000kg |
| Voltage: | 220V |
| Price: | $10000-$50000 |
| Company Info. |
| Shanghai Shuping Precision Industry Machinery Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

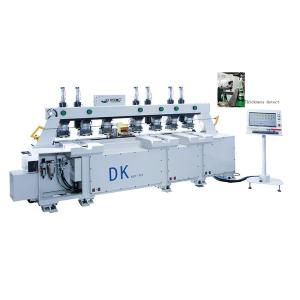

drilling and milling center
Fully functional drilling and milling center for horizontal and vertical frames
For assembled door production to become more rapid & accurate,easy to assemble.
Processing range:Horizontal Frame drilling and milling for assembled doors,cabinet doors,wall panels.
| Technical parameters | |
| Electrospindle | standard with oil cooling & lubrication 8KW |
| Working Lengh | 2520mm |
| Working Width | Unlimited Working Width |
| Working Thickness | 50mm |
| Cutter Diameter | Φ80-100mm |
| Drilling Unit(Pitch 32mm) | P32x4 |
| Overall Dimensions | 3400X1400X1660mm |
Characteristics | Description |
|---|---|
| Efficiency | Automatic thickness measurement, alternating 6-station process. |
| Aesthetics | High-power anti-slip cylinder, main milling spindle forward & reverse rotation, edge explosion-free. |
| Flexible | Hinges can be arbitrarily punched. |
| Simple | Easy, clear, and friendly for automatic work processing with module
programs. |
|
