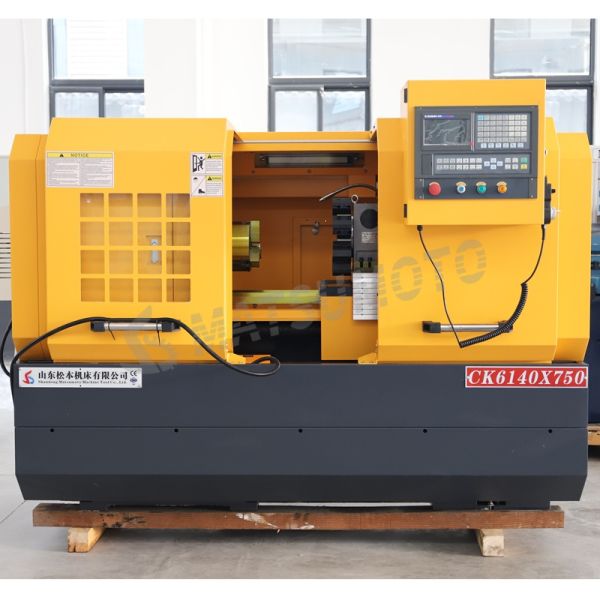

CK6140 Horizontal Flat Bed CNC Lathe Machine High Precision 750mm 1000mm 1500mm

Name: CK6140 Horizontal Flat Bed CNC Lathe Machine High Precision 750mm 1000mm 1500mm
Brand: Matsumoto
Price: 9000 USD

CK6140 Horizontal Flat Bed CNC Lathe Machine High Precision 750mm 1000mm 1500mm

Categories	Flat Bed CNC Lathe Machine
Brand Name:	Matsumoto
Model Number:	CK6140
Certification:	CE
Place of Origin:	China
MOQ:	1
Price:	$9000-10500
Payment Terms:	T/T
Delivery Time:	15 working days
Packaging Details:	plywood case
Max. Swing over bed:	400mm
Max. Swing Dia.over slide:	200mm
Max. Processing length:	750/1000/1500mm
X axis travel:	240mm
Spindle nose:	A2-6
Chuck size:	200mm

Contact Now

Add to Cart

Company Info.

Shandong Matsumoto Machine Tool Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

CK6140 Horizontal Flat Bed CNC Lathe Machine High Precision 750mm 1000mm 1500mm

CK6140 Horizontal CNC Lathe Machine High Precision Flat Bed Lathe

Features:

CK series CNC horizontal lathe has the characteristics of high
precision, high power, high rigidity, etc.Its main components and
structures have been optimized. The machine is equipped with
Gsk980tdc or FANUC OI mate CNC system and full digital AC servo
system, X and Z axes adopt semi closed loop control, ball screw
adopts C3 precision ball screw, and electrical components adopt
imported or domestic famous brands, meeting CE or domestic 3C
certification.It is the preferred equipment for machining shafts,
discs, sleeves, special surfaces and screw.

CK6140 cnc lathe machine is one of our best-selling models.

PROJECT
UNIT
CK6140
Max. Swing over bed
mm
400
Max. Swing Dia.over slide
mm
200
Max. Processing length
mm
750/1000/1500
X axis travel
mm
240
Spindle speed series
/
2 gears/promise
Spindle speed range
r/min
50-2000
Spindle nose
/
A2-6
Diameter of spindle through hole
mm
52/82
Taper of spindle front hole
mm
MT5
Motor power of spindle
kw
5.5
Chuck size
mm
200
X/Z axis servo motor torque
N.M
X:4/Z:6
X/Z axis rapid fast moving
m/min
X:6/Z:8
Repeat positioning accuracy
mm
±0.005
Tailstock quill diameter
mm
60
Tailstock quill travel
mm
130
Tailstock quill taper
/
MT4
Tool post form
/
4 station electric tool post
Tool size
mm
20*20
Weight
kg
2100
Dimension
mm
2500*1500*1650

Standard Accessories
Optional Accessories
Frequency Spindle;
200mm 3-jaw Manual Chuck;
4 station turret;
Manual Tailstock;
Full-splash Guard
Stepless speed change
Hydraulic Chuck;
Hydraulic tailstock;
step speed change by manual;
Auto 3-step speed change;
6/8/12-station turret;
Center Rest and follow rest;
4-Jaw chuck.
Living tools

Machine Details:

Product Tags:

CK6140 horizontal CNC lathe machine

high precision flat bed lathe

Precision Flat Bed CNC Lathe Machine

CK6140 Horizontal Flat Bed CNC Lathe Machine High Precision 750mm 1000mm 1500mm

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shandong Matsumoto Machine Tool Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

PROJECT	UNIT	CK6140
Max. Swing over bed	mm	400
Max. Swing Dia.over slide	mm	200
Max. Processing length	mm	750/1000/1500
X axis travel	mm	240
Spindle speed series	/	2 gears/promise
Spindle speed range	r/min	50-2000
Spindle nose	/	A2-6
Diameter of spindle through hole	mm	52/82
Taper of spindle front hole	mm	MT5
Motor power of spindle	kw	5.5
Chuck size	mm	200
X/Z axis servo motor torque	N.M	X:4/Z:6
X/Z axis rapid fast moving	m/min	X:6/Z:8
Repeat positioning accuracy	mm	±0.005
Tailstock quill diameter	mm	60
Tailstock quill travel	mm	130
Tailstock quill taper	/	MT4
Tool post form	/	4 station electric tool post
Tool size	mm	20*20
Weight	kg	2100
Dimension	mm	250015001650
